Automatic Processing Technology of AB Epoxy Resin: Driving Efficiency and Quality Upgrade in Industrial Manufacturing
In the field of industrial manufacturing, AB epoxy resin is widely recognized as a core material due to its excellent mechanical properties, chemical stability, and adhesion. It plays an irreplaceable role in electronics, new energy, automotive parts, medical equipment and other high-precision fields. However, the traditional manual or semi-automatic processing mode of AB epoxy resin has long been plagued by problems such as inaccurate proportioning, uneven mixing, bubble residues, and low production efficiency, which seriously restrict the improvement of product quality and production scale. With the rapid development of industrial automation, the integrated automatic processing technology integrating automatic feed, automatic defoaming treatment, automatic stirring and automatic mixing has emerged, completely solving the pain points of traditional processing and opening a new era of efficient, precise and stable production of AB epoxy resin.
Automatic Feed: The Foundation of Precise Proportioning, Laying a Solid Foundation for Quality
The core of AB epoxy resin processing lies in the accurate proportioning of component A (resin) and component B (curing agent). The traditional manual feeding mode relies on manual weighing and pouring, which is not only time-consuming and labor-intensive, but also prone to errors due to human factors such as visual deviation and operational negligence, resulting in incorrect proportioning of A and B components. This not only affects the curing effect of the resin, leading to the decline of product mechanical properties and service life, but also causes unnecessary material waste.
The automatic feed system of AB epoxy resin effectively solves this problem by virtue of advanced intelligent control technology. The system is equipped with independent storage tanks for component A and component B, and adopts high-precision metering pumps and servo motor control to accurately measure the dosage of each component according to the preset proportion (usually 1:1 to 10:1, which can be customized according to actual needs). The whole feeding process is fully automated, without manual intervention. The PLC control system and human-computer interface realize intuitive operation and parameter adjustment, and can store 99 groups of parameters for quick call, ensuring the consistency of feeding proportion in each batch of production. In addition, the system is equipped with liquid level sensors, which can automatically alarm when the material level is too high or too low, avoiding production interruption caused by material shortage or overflow, and ensuring the continuity and stability of the production line. Whether it is small-batch laboratory production or large-scale industrial mass production, the automatic feed system can meet the precise feeding needs, laying a solid foundation for the subsequent processing links.
Automatic Defoaming Treatment: Eliminating Quality Hidden Dangers and Improving Product Performance
Bubble generation is a common problem in the processing of AB epoxy resin. These bubbles come from multiple links: mechanical air entrainment during stirring and feeding, small molecule gas released by the reaction between curing agent and resin, and solvent volatilization in solvent-based epoxy systems. The existence of bubbles will bring serious hidden dangers to the quality of epoxy products: it will reduce the tensile strength and impact resistance of the material, cause defects such as pinholes and shrinkage holes on the product surface, and even lead to functional failure in high-precision fields such as electronic packaging and medical equipment. The traditional manual defoaming method (such as natural standing or manual stirring and defoaming) has low efficiency and poor effect, and it is difficult to completely remove the tiny bubbles inside the resin.
The automatic defoaming treatment technology integrates physical defoaming and chemical auxiliary defoaming, forming a full-chain bubble control system. On the one hand, the system adopts vacuum defoaming technology. By placing the mixed resin in a sealed vacuum environment, the pressure is reduced to make the bubbles inside the resin expand and float up, and then discharge them through the exhaust system. The combination of vacuum defoaming and automatic defoaming agents can increase the bubble removal rate to more than 95%. On the other hand, the system can add appropriate defoaming agents according to the type and viscosity of the resin. Through the synergistic effect of silicone-based and organic-based defoaming agents, it can not only prevent the generation of new bubbles (foam suppression), but also quickly break the existing bubbles (foam breaking) and accelerate the separation of tiny bubbles (defoaming). The automatic defoaming system can adjust the defoaming time, vacuum degree and defoaming agent dosage according to the characteristics of the resin, ensuring that the treated epoxy resin is free of bubbles, uniform in texture, and effectively improving the mechanical properties, insulation performance and surface finish of the final product.
Automatic Stirring: Preventing Sedimentation and Ensuring Uniformity of Component Properties
Component A and component B of AB epoxy resin are usually stored separately. During long-term storage, the active ingredients in the resin are prone to sedimentation, resulting in uneven distribution of components, which will affect the mixing effect of the two components and the curing quality of the final product. The traditional manual stirring method has uneven stirring force and speed, and it is difficult to fully stir the sediment at the bottom of the storage tank, which not only affects the product quality, but also increases the labor intensity of workers.
The automatic stirring system is installed in the storage tanks of component A and component B respectively, and adopts motor-driven stirring blades with reasonable design. The stirring speed and time can be preset according to the type and viscosity of the resin, realizing continuous and uniform stirring of the resin. For high-viscosity resins, the system can also be equipped with heating devices to appropriately reduce the viscosity of the resin, making the stirring more sufficient. The automatic stirring system not only prevents the sedimentation of resin components, ensures the uniformity of the performance of each component, but also avoids the manual operation error, reduces the labor cost, and provides a stable and uniform raw material guarantee for the subsequent automatic mixing link. In small-scale production scenarios such as handicrafts and laboratories, portable automatic stirrers can also complete uniform stirring in 40 seconds, which is efficient and labor-saving.
Automatic Mixing: The Core Link to Achieve Perfect Integration of Components
Automatic mixing is the core link of AB epoxy resin processing, which directly determines the curing effect and product performance of the resin. The traditional manual mixing method is not only inefficient, but also easy to cause uneven mixing due to inconsistent stirring speed and time, resulting in incomplete curing of the resin, uneven hardness of the product, and even product scrapping. In addition, manual mixing is easy to introduce new air bubbles, which further affects the product quality.

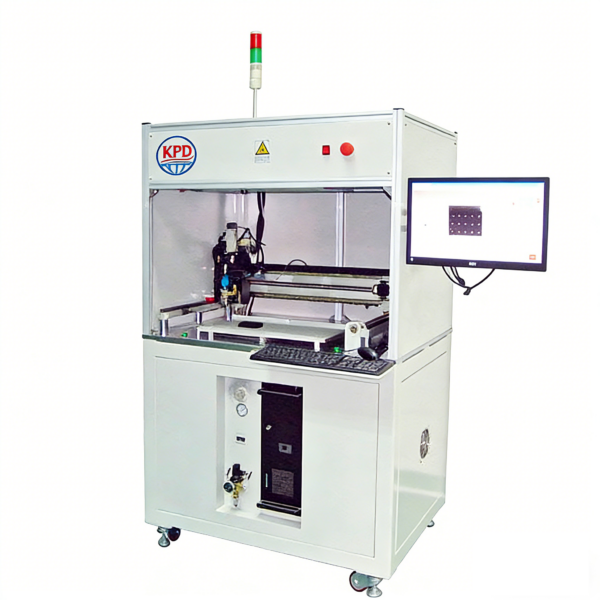

The automatic mixing system realizes the perfect integration of component A and component B through precise control and scientific mixing mechanism. After the automatic feeding of component A and component B, they are transported to the mixing chamber through the pipeline, and the static spiral mixing or dynamic mixing mechanism is used to fully stir and mix the two components. The mixing speed and time are accurately controlled by the PLC system, which can be adjusted according to the viscosity of the resin and the mixing ratio, ensuring that the two components are fully fused and the mixing uniformity reaches more than 99%. At the same time, the automatic mixing system is closely connected with the automatic defoaming system. While mixing, the tiny bubbles introduced during the mixing process can be removed in time, ensuring that the mixed resin is bubble-free and uniform. In addition, the system is equipped with an automatic cleaning function, which only needs to clean the mixing gun head after use, saving cleaning time and material cost.
The Integrated Value of Automatic Processing Technology: Promoting the Transformation and Upgrade of the Industry
The integration of automatic feed, automatic defoaming treatment, automatic stirring and automatic mixing has formed a complete AB epoxy resin automatic processing line, which has brought revolutionary changes to the industrial manufacturing industry. Compared with the traditional processing mode, this automatic processing technology has obvious advantages: first, it greatly improves production efficiency. One automatic mixing machine can replace 3-5 manual workers, realize continuous production, and significantly shorten the processing cycle; second, it ensures product quality stability, avoids human errors, and makes the performance of each batch of products consistent, reducing product scrap rate; third, it saves costs, reduces material waste and labor costs, and the automatic cleaning function further reduces the use cost; fourth, it improves the production environment, avoids the dripping of glue during manual operation, and keeps the workshop clean and tidy.
At present, this automatic processing technology has been widely used in various fields. In the electronic manufacturing industry, it is used for PCB board potting, LED packaging and relay sealing, ensuring the insulation and stability of electronic components; in the new energy industry, it is used for potting of power battery modules and photovoltaic components, improving product safety and service life; in the automotive industry, it is used for sensor packaging and headlamp lens bonding, meeting the strict performance requirements of automotive parts; in the medical equipment field, it is used for the assembly of medical devices and the sealing of microfluidic chips, complying with relevant international standards.
Conclusion
The automatic feed, automatic defoaming treatment, automatic stirring and automatic mixing technology of AB epoxy resin is an important embodiment of the integration of industrial automation and material processing technology. It not only solves the long-standing pain points of traditional AB epoxy resin processing, but also provides a strong technical support for the high-quality development of related industries. With the continuous progress of intelligent manufacturing technology, the automatic processing technology of AB epoxy resin will be further upgraded, showing more efficient, precise and intelligent characteristics, and will continue to play an important role in promoting the transformation and upgrade of the manufacturing industry, helping enterprises improve their core competitiveness and create greater industrial value.
