2k Dosing system 2 component AB mixing dispensing machine Thermally conductive epoxy silicone compound potting machine

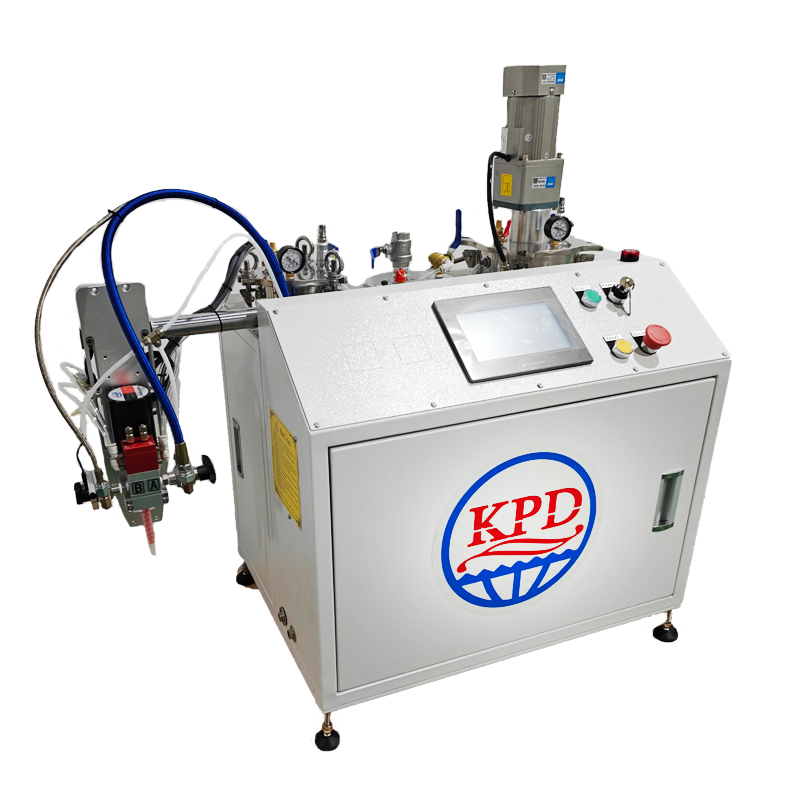

2-K-DOS Metering, Mixing and Dispensing System
Oursystem accurately meters, mixes and dispenses two-component medium to low-viscosity materials for potting, gasketing,sealing
Potting and encapsulation is the process of embedding electronic components & assemblies in a liquid resin (potting compounds) to protect them against rough environment conditions. Potting can be performed in atmosphere pressure or even under vacuum, if high voltage insulation and high temperature differences are needed. Encapsulation of parts will stop corrosion of metals and reduce damage caused by vibration and mechanical stress.
We offer automatic and se-mi automatic fluid dispensing potting machine
What is the difference between 2K AB adhesive materials manual potting machine and robot potting machine ?
- Vacuum material-feeding system or diaphragm pump feeding system
- High precision pump metering system
- Dynamic/Static mixing system
- Three-axis motion system
- Programming control system.
AB–component materials flows into the pump through the feeding system (AB tanks) separately by the self-suction force of the metering pump.
- Vacuum material-feeding system
- High precision pump metering system
- Dynamic/Static mixing system
- Manual dispensing by glue gun or pedal .
AB–component materials flows into the pump through the feeding system (AB tanks) separately by the self-suction force of the metering pump.
Strong versatility / Multiple configuration / High production capacity / High precision
- Auto feeding : take use of vacuum pressure to feed materials into A&B tank separately.
- Tank Stirring : A and B tank configure with stirring motors and blades to prevent material sediment in the tank bottom .
- Heating : Tank , pipe , pumps are optional with heaters to assure the whole system can be heating from room temperature to 90°C adjustable.
- Vacuum : A &B tank vacuum for degas the bubble inside material .
- Dynamic mixing : Configuring dynamic motor and mixer to mix A and B fluids evenly.
Advantages:
1,Accurated metering and even mixing helps to avoid the waste of material.
2,Dispensing volume and positioning keep machine work consistent and fast.
3,Good universality
4,Easy to program and operate.
5,Tally function, non-standard mode, primer mode, level alert, filter mode, liquid display device, preventing back-flow device and other functional device.
Applications:
Potting&Encapsulation &Casting: electronics componnets , PCB board, Capacitor, power supply, transformer, ignition coil, reverse sensor, circuit board, filter products ,underwater parts, electronic ballast ,aviation parts, aerospace parts….
Dispensing&Dosing : LED strip , led lamp , led bulb , aluminum,led screen , display module ,medical parts,medical liquid filling ….
Transformer , capacitance , power module , regulating plate ,protection module , generator , pressure package , soli relay ,fault indicator , Sensors , junction box , clutch , wave filter , water meter , boattery cover , rectifier and so on …
1K and 2-component polyurethanes, epoxies, acrylics, silicones, temperature, humidity and UV curing materials.
Two component potting materials , 2-part compound materials, AB part compound materials , 2K silicones ,2K epoxies resin, Bi-component PU, Ployerster, Polyurethane, UV materials and so on
