Resin Metering and Dispensing Machine: The Precision Core Equipment for Modern Resin Processing
Resin materials, with their excellent adhesion, insulation, corrosion resistance, and mechanical strength, are widely used in many high-end manufacturing fields such as electronics, new energy, automobiles, aerospace, and composite materials, becoming an indispensable basic material in modern industrial production. Whether it’s epoxy resin, polyurethane resin, polyimide resin, or silicone resin, the success of their application depends crucially on the accuracy of metering, the uniformity of mixing, and the stability of dispensing. As automated equipment specifically designed for resin processing, the resin metering and dispensing machine integrates core functions such as precise metering, efficient mixing, intelligent control, and controllable dispensing. It completely solves the pain points of inaccurate proportions, uneven mixing, and material waste inherent in traditional manual operations, becoming a core driving force for the resin processing industry towards automation, refinement, and large-scale development.
The core competitiveness of the resin metering and dispensing machine lies in its precise working mechanism tailored to the characteristics of resin materials. It enables closed-loop control of the entire process from raw material pretreatment to finished product dispensing, ensuring the stability and consistency of each step. Unlike ordinary mixing equipment, this type of machine fully considers the characteristics of resin viscosity changes with temperature, the stringent requirements of the curing reaction on the mixing ratio, and the tendency to generate air bubbles. Through modular design and intelligent control, it adapts to the processing needs of different types and viscosities of resin. Its complete workflow can be divided into four key stages, each working in tandem to ensure high-quality resin processing.
The first stage is raw material storage and pretreatment, which is the foundation for ensuring stable subsequent processing. The machine is equipped with two independent corrosion-resistant storage tanks, one for storing the resin substrate and the other for the curing agent, fundamentally preventing premature curing caused by pre-mixing. Addressing issues such as viscosity fluctuations and solid particle sedimentation that easily occur during resin storage, the storage tanks can be configured with heating, temperature control, and automatic stirring functions as needed to adjust the resin viscosity to the optimal processing range, preventing particle sedimentation from affecting metering accuracy and mixing effect. Simultaneously, the vacuum degassing function, as a core feature, effectively eliminates air bubbles generated during resin storage and stirring, preventing bubble defects from affecting the structural integrity and performance stability of the final product. This is particularly important in the processing of large composite materials, effectively improving product yield.
The second stage, precise metering, is the core step that determines the resin curing effect and product performance. The accuracy of the resin-to-curing agent ratio directly affects the mechanical strength, adhesion, and service life of the cured product. Even a slight deviation in the ratio can lead to incomplete curing, insufficient strength, or even product failure. Resin metering and dispensing machines use high-precision metering pumps driven by servo motors, such as gear pumps and piston pumps. Among them, gear metering pumps, with their advantages of precise structure and stable liquid delivery, are widely used in production scenarios such as polyimide film production where extremely high metering accuracy is required. The liquid delivery volume depends on the gear tooth clearance and rotation speed, which can be precisely controlled through frequency conversion speed regulation. The mixing ratio of this type of machine can be flexibly adjusted between 1:1 and 100:10 according to needs, with a metering accuracy of ±0.5% to ±1%. Some high-end models are also equipped with visual flow meters and liquid level monitoring devices, which can monitor the raw material supply status in real time and automatically alarm when there is a shortage of material, avoiding product defects caused by uneven mixing. In polyimide film production, by adjusting the metering pump speed, the resin level can be stably controlled within ±2% of the target value, effectively improving film thickness uniformity and reducing thickness tolerance from the traditional 8%~10% to 3%~5%.
The third stage is efficient mixing, ensuring that the resin and curing agent achieve molecular-level uniform fusion, laying the foundation for subsequent distribution and curing. Depending on the resin viscosity and processing requirements, the machine mainly employs two mixing methods: static mixing and dynamic mixing. Static mixing relies on a built-in spiral mixing tube. As the two raw materials flow through the tube, they are continuously broken down, cut, and recombined, ultimately achieving uniform mixing. This method has no moving parts, low maintenance costs, and is suitable for most resins of common viscosities. Dynamic mixing uses a high-speed rotating mixing head to actively shear and stir the raw materials, resulting in more thorough mixing. It is suitable for high-viscosity resins or scenarios with stringent requirements for mixing uniformity, such as the processing of large fiber-reinforced plastic (FRP) parts. Furthermore, some models are equipped with a dual air and liquid cleaning system, which automatically cleans the mixing device and conveying components after processing, preventing resin curing and clogging of the pipes, thus reducing maintenance costs.

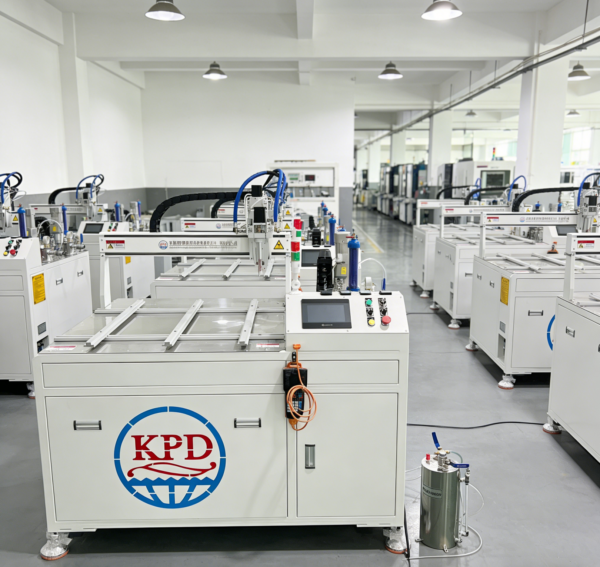

The fourth stage involves controllable distribution and intelligent control, achieving precise application and full-process automation of the resin mixture. The uniformly mixed resin is transported to the distribution head via high-pressure pipelines, allowing for flexible switching between point, line, surface, and filling distribution modes according to product requirements. The distribution head is typically mounted on a three- or four-axis motion platform, utilizing teach-programming and graphical import functions to achieve automatic distribution along complex paths with a repeatability accuracy of ±0.05mm, ensuring consistent distribution for every product. The machine’s intelligent control system is centered on a PLC, coupled with a touchscreen interface, supporting the storage of hundreds of production formulas. Parameters can be quickly recalled when changing products, significantly improving production efficiency. Simultaneously, the system monitors key parameters such as temperature, pressure, and proportions in real time. Equipped with proximity switches and high/low liquid level sensors, it automatically shuts down and alarms in case of abnormalities, preventing accidents and ensuring safe and stable production. Some high-end models can also interface with IoT and MES systems to achieve real-time production data acquisition, remote monitoring, and process optimization.
Compared to traditional manual metering and simple mixing equipment, resin metering and distribution machines offer irreplaceable advantages. Firstly, it significantly improves product qualification rates, completely eliminating proportioning errors and uneven mixing caused by manual operation, ensuring the full performance of the resin. Secondly, it reduces material waste; through precise control of the dispensing amount, resin loss can be reduced by 15% to 30% compared to manual operation, especially for high-value resins, significantly reducing production costs. Thirdly, it improves production efficiency; automated operation reduces manual intervention and labor intensity, adapting to large-scale batch production. The modular design allows for flexible configuration of functions according to customer needs, adapting to different resin types and processing scenarios. Fourthly, it ensures production stability; closed-loop control and real-time monitoring throughout the entire process effectively avoid abnormal situations during production, reducing downtime losses.
The application scope of resin metering and dispensing machines covers almost all resin processing fields, playing a key role in promoting the upgrading and development of various industries. In the electronics industry, resin is widely used in PCB board packaging, LED module potting, and sensor and transformer insulation. Through precise resin dispensing, it provides reliable insulation, heat dissipation, and moisture protection for electronic components. In the new energy sector, it is used for power battery module potting and photovoltaic module bonding. Leveraging the high strength and high-temperature resistance of resin, it ensures the safety and lifespan of new energy products. Furthermore, in the production of large FRP products such as wind turbine fiberglass components and large fiberglass yachts, it can be used in conjunction with Moldex 3D mold flow analysis to accurately simulate resin flow and ensure product molding quality. In the automotive industry, it is used for bonding automotive electronic components and sealing body seams, improving the structural strength and durability of automotive parts. In the aerospace field, it is used for the packaging and bonding of aerospace components, meeting the stringent precision and performance requirements of high-end equipment. In addition, it provides efficient and stable resin metering and dispensing solutions in fields such as medical equipment, building materials, and art processing.
As global manufacturing upgrades towards intelligence and green practices, and as the application scenarios of resin materials continue to expand, resin metering and dispensing machines are developing towards greater precision, intelligence, and environmental friendliness. In terms of precision improvement, the application of high-precision linear guides and servo motors further reduces dispensing errors, meeting the processing needs of microelectronic products and high-end composite materials. Regarding intelligence, the integration of AI algorithms can automatically adjust mixing parameters and dispensing speed based on resin rheological data, achieving adaptive process optimization. Simultaneously, deep integration with intelligent production lines enables digital control of the entire production process. In terms of green development, the application of energy-saving design and low-VOCs processing technology effectively reduces equipment energy consumption and environmental pollution, responding to the “dual-carbon” strategy. In terms of functional expansion, breakthroughs in related technologies are continuously expanding the application range of the equipment to meet the processing needs of special materials such as high-viscosity resins and nano-filled resins.
In summary, the resin metering and dispensing machine is a precision equipment integrating fluid mechanics, materials science, and intelligent control technology. It transforms the complex resin processing process into a stable, efficient, and traceable automated process, not only solving the pain points of traditional resin processing but also promoting the high-end and large-scale development of resin applications. With continuous technological innovation and the ongoing upgrading of industrial demands, the resin metering and dispensing machine will play a more important role in the global industrial chain, providing strong equipment support for the development of strategic emerging industries such as electronics, new energy, and aerospace, and helping the manufacturing industry achieve high-quality upgrading.
