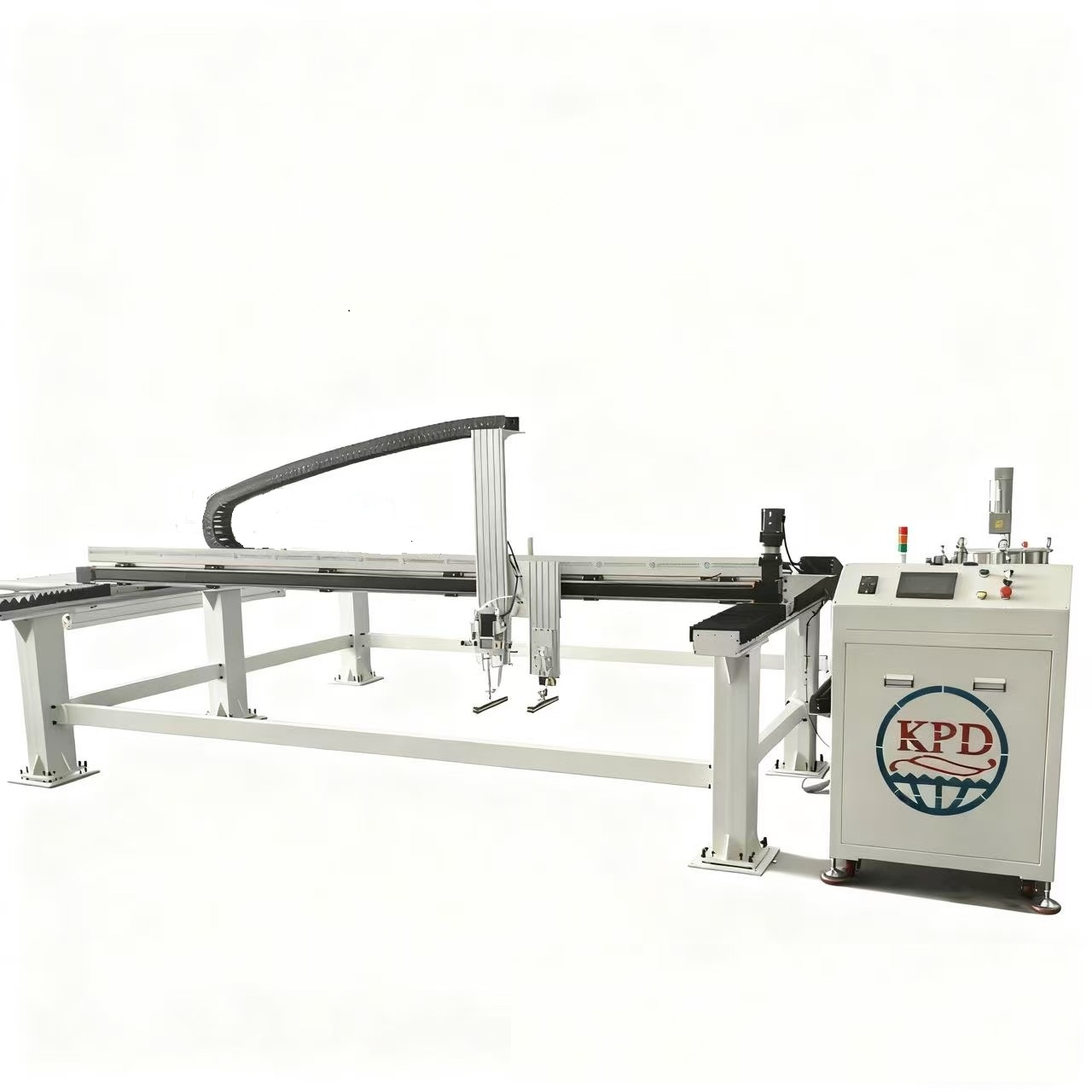

3m*3m glue dispensing machine ab glue potting machine spraying machine

Place of Origin: GuangzhouCHINA
Brand Name: Kapudun Dispensing
Certification: CE
Model Number: KPD-3600
Field: Industrial
Shipping Terms: EXW/FOB/C&F
Minimum order Quantity: 1 set
Packing Detail: export standard package
Delivery Time: 15 work day
Payment: TT
Supply Ability: 5pcs/months

Introduction

Glue spraying Machine can be applied for different types of boards, such as cellullar boards, fiber cement boards, calcium silicate boards, OSB boards, furniture boards, aluminum composite panel,sandwich rockwool panel, Heat Insulation Eps Xps Fiber Cement Sandwich Panels OSB SIP, aluminum honeycomb core boards, Refrigerated carriage board, Structural Insulation Panels (SIPs),etc.

Functions of the Coating Machine Equipment

1.Automatic glue spraying mode—freely set the glue spraying size,only spray the effective area of the board,the glue spraying positioning is accurate, and the glue spraying margin can be freely set.

2.Quick positioning mode—The equipment is equipped with a wireless remote control handle to remotely control the start and stop of glue spraying, glue spraying positioning, etc.

3.The glue spraying speed and glue dosage can be freely set, and the glue spraying amount can be precisely controlled in automatic mode.

4.The coating head is equipped with a pulse-type air mist cleaning function, with freely settable cleaning times and cycles, using sealed containers to collect the waste and prevent solvent pollution during cleaning, no need for manual cleaning and solving common clogging issues in similar equipment.

5.The equipment uses imported mixing tubes for mixing, ensuring even mixing and avoiding unevenness due to significant disparity in glue ratios (e.g., 4:1, 5:1, 10:1).

6.The coating head is made of aviation-grade aluminum in one piece, with an imported anti-stick coating on the surface (unlike the plastic coating heads combined on the market), featuring corrosion resistance, backflow prevention, and a quick-release structure for easy cleaning. (Patented product of the company)

7.The equipment has online ratio monitoring and proportion testing functions, and will give an immediate alarm when an abnormality occurs to prevent batch production of waste products.

8.Two groups of precision metering pumps are driven by well-known brand servo motors for precise glue output control.

9.The control system and electrical components all use imported brands, ensuring stable operation of the equipment.

10.The human-machine interface adopts full touch screen operation and is equipped with a fault alarm system. The fault system is equipped with a network central controller, which is linked to the company’s big data. Equipment faults can be eliminated remotely, saving after-sales time.

11.Selects well-known brand special precision metering pumps for accurate metering, stable quality, and long life.

12.The two sets of pipelines are equipped with hydraulic sensors. When the pipeline is blocked or the pressure is too high, it can automatically stop and alarm to protect the equipment.

13.Uses imported double-row guide rails with servo motor drive, equipped with an automatic oiling machine, ensuring a stable and durable structure with simple and convenient maintenance.

14.The glue spraying conveyor is driven by a servo motor, which drives the roller through a precision reduction mechanism to achieve accurate positioning of the glue spraying.

15.The equipment is configured with automatic and manual modes, with the automatic mode for production and the manual mode for debugging and maintaining the equipment.

Specifications:

Equipment Model	Gantry type	Power Supply	380v 50Hz	Air Source	0.6 -0.8Mpa
Glue Output	0-6000g/min	Flow Accuracy	≤ ± 3%	Equipment Power	10kw
Equipment Size	Xyz axis 3m1.50.1	Glue Viscosity Range	A glue ≤30000mpa.s (at 24°C ambient temperature)	Key Selling Points	Top Quality and Competitive Price
A/B glue Ratio Precision	Ratio Precision: ≤±2% (e.g., 100: 25±2)	Applicable Industries	Refrigerated Carriage Panels Integrated Insulation Panels Composite Board Sandwich Board Honeycomb Panels Manual Purification Panels Fireproof Panels	Set the glue speed	1m-5m/min

KPD automation Michinery Our machines can compound the following products
Item	Product Name	Item	Product Name	Item	Product Name
1	Integrated Ceiling	20	Calcium Silicate Integrated Board	39	Blackboard
2	Integrated House	21	Manual Purification Board	40	CRRC Floor
3	Wallboard	22	Refrigerated Truck Body Panels	41	Sun Room Insulation Panels
4	All-Aluminum Furniture	23	Shelter board	42	New Insulation Board
5	Stainless Steel Cabinets	24	Military Signal Vehicle	43	Tooling Honeycomb Panel
6	Stainless steel honeycomb panel	25	Chicken Coop Board	44	Plates for Petrochemical Equipment
7	Exterior Honeycomb Panel	26	Rock Wool Sandwich Panel	45	Motor Home
8	SPC Honeycomb Panel	27	Roller Shutter Door	46	Exporting Wood Composites
9	FRP honeycomb panel	28	Fire-proof Door	47	Building Materials Composite
10	HPL honeycomb panel	29	MgO Panels	48	Heterosexual Honeycomb Panel
11	Aluminium foam core sandwich panel	30	Oil Tank Cover	49	SIPs (Structural Insulated Panels)
12	FRP foam core sandwich panel	31	Air Duct	50	FIPG (Formed-in-Place Gasket)
13	FRP plywood panel	32	Computer Room Floor	51	Glue Laminated Timber
14	Thermal Insulation Panel	33	Shelter Board	52	EPS(Expandable Polystyrene)
15	Aluminum Integrated Plate	34	Office Partition	53	XPS(Extruded polystyrene board)
16	Artificial Turf	35	Medical Door	54	Gymnastics Flooring
17	Copper Honeycomb Panel	36	Metal Insulation Board	55	Wooden Doors and Windows Manufacturing
18	Aluminum Honeycomb Panel	37	Air Duct Glass Magnesium Board Lamination	56	PVC Sandwich Panels Manufacturing
19	Stone Integrated Board	38	Cement Board	57	Wooden Doors and Windows Manufacturing

Our Factory

Logistics packaging collection

LED Driver, Power-supply

Our two-component In-line automated vacuum potting system machine is often used in the LED driver, power supply dispensing, with this encapsulated process, the product is heat dissipation, moisture-proof, waterproof, and flame retardant.

EMI, FIP, TIM

EMI and FIP dispensing techniques are widely use in the telecommunication and transportation industries. With the rapid development of communications, electric vehicles, and personal wireless electronic gadgets, these products are often required to connect and interact between each others. However, the signals sometimes interfere with the others, so need to be filtered or shielded. To improve and control the electromagnetic signals, engineers can redesign the entire product, or it can apply EMI shielding materials to filter or shield. Shielding is relatively economical and easy to achieve, it is done basically by adding shielding gasket. Our dispensing machine can directly produce different sizes of triangular shapes or D-shape filtering gaskets, these gaskets can appear in different shapes and is directly applying to the products. The dispensing machine equips with special adhesive material dispensing valve to apply directly, and without post-processing. The machine is intelligent, precise, but user-friendly, without complicated installation, or setup. In addition to the above functions, this type of dispenser equipment can also dispense FIP adhesive glue, and thermal interface material. The equipment is not only precise, but also multi-purpose, which is convenient for various type of storage battery, and electronic product applications.

EMS, Underfill

Dispensing equipment are important for various EMS (electronic manufacturing service) productions. Electronic product processing service industry is indispensable to modern life, because many products are now equips with electronic and become more intelligent. These products are becoming more and more complex, precise and tiny in size. And for consumer product, their production volume also in large production and fast turnover. Therefore, it is necessary to use automated equipment, or even fully automated production lines to produce to meet apply the materials. With the automatic dispensing robots, it is possible to catch up with the capacity and demands. And more importantly, to improve economic efficiency to maximize economic of scale, and so to reduce unit prices to enhance competition. Very often in this type of production, the uses of dispensing machines or equipment is inseparable. In this production process, the glue dispenser is usually used to assist in the functions of fixing, connecting, protecting, dissipating heat and so on between parts and components. Our glue dispensers can directly add the relevant materials to the specified positions accurately and quickly as required.

Casting, Encapsulating

Two-component materials’ encapsulating and casting production are important to enhance electronic products. No matter if your product is for business selling, or for household consuming, nowadays everyone has higher quality requirements and expectations. Furthermore, the protection of the product is not only to optimize the function of the product, but also to prolong the service life of the product, thereby reducing production waste. In electronic products the parts and components are generally composed of different metals and sensitive chemical combined materials. The more precise the product, the more high-tech the product it is, with this, it requires higher protection, so that it can be optimized according to the requirements. In doing so, it can state of long-term operation without being affected by the surrounding environmental conditions. Our two-component potting machines are specially designed for this production, as well as our vacuum encapsulating and casting potting machines. These machines can accurately degas the two-component adhesive materials base on the ratio, meter, mix, and homogenously and continually to the products. These materials cannot be applying manually, they need to use machines, which can be supplied in large quantities, continuously, accurately, and for long time of works. With the materials provided by such equipment, the product will have better protection, heat dissipation, waterproof, moisture-proof, encryption (to protect the circuitry design, and components used).
