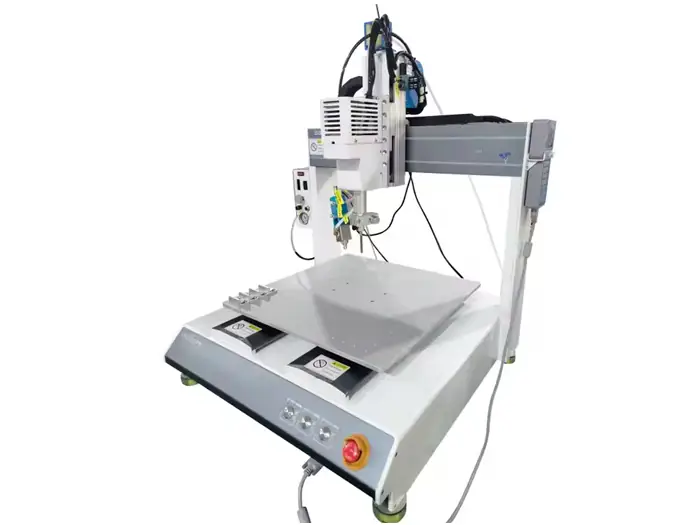

Automated inline desktop dispenser with conveyor SEC-E380L Benchtop Dispensing Platform
1.Durable fully automatic 4 axis Double Y dispensing robot.
2.Suit for UV glue, solder paste, red glue…etc.
3.One-piece die-casting aluminum boday.
4.User friendly teaching pendant.
5. Can be equipped with different glue supply systems
Material ref.:
UV glue, AB glue, EPOXY (black glue), white glue, EMI conductive glue, silicone, RTV, epoxy resin, instant glue, silver glue, red glue, solder paste, thermal paste, solder mask paste , clear paint, screw fixer, etc.
Feature：
- One-piece casting, strong structure, stable operation; smaller size, larger stroke
- Servo motor plus precision grinding screw drive mode, speed block, high precision, large load
- The size remains the same, but the stroke increases by 20-25%, making it more compatible.
- Abundant product categories, single platform and dual platform are optional to meet the application of different scenarios.
- The platform has more advanced and powerful functions, which can be equipped with functions such as visual positioning, automatic calibration, glue dispensing detection, laser height measurement and compensation, product information scanning, MES system docking, etc., to meet the use of various industries and multiple scenarios
- Equipped with a high-precision piezoelectric valve, the applicable viscosity range is 1-200000cps, the minimum dispensing volume can be accurate to 0.1nl, and the minimum dispensing strip width is 0.2mm
Product features:

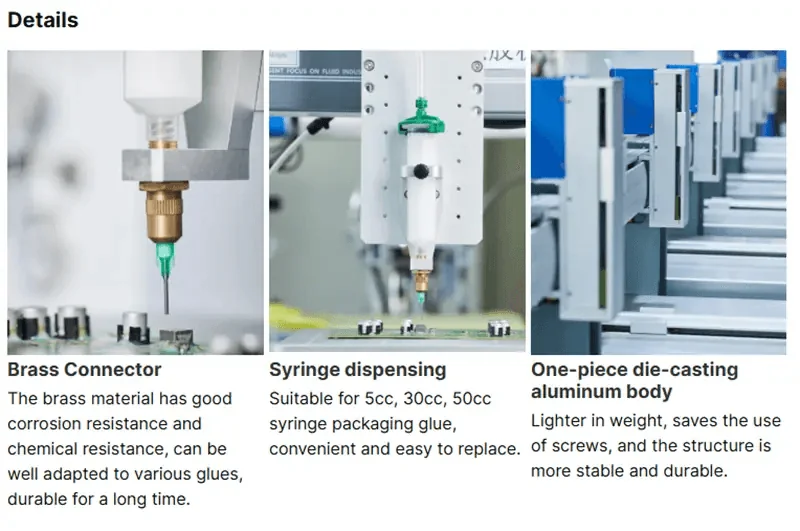

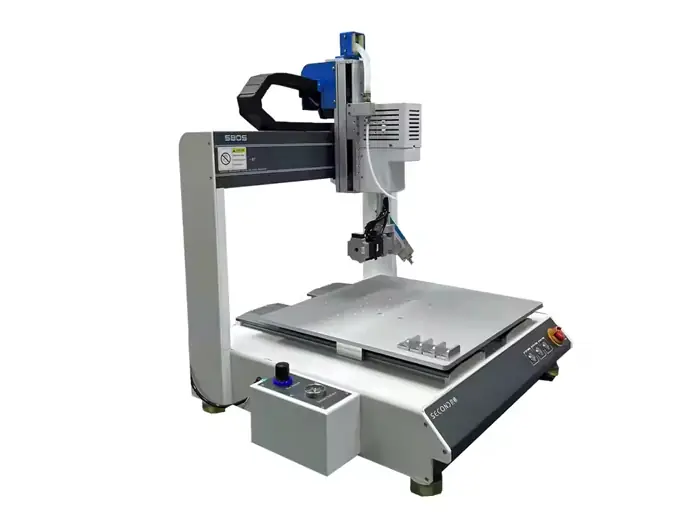

Detailed

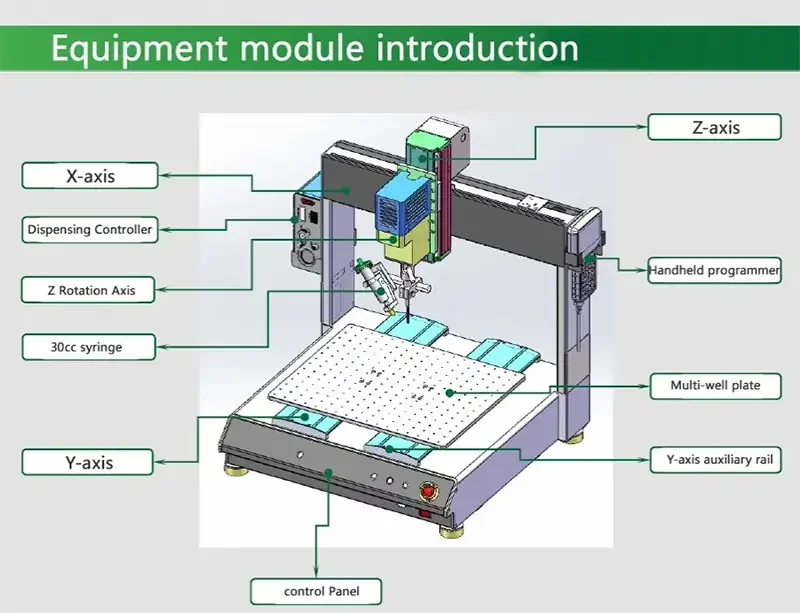

Structure diagram
Product Description

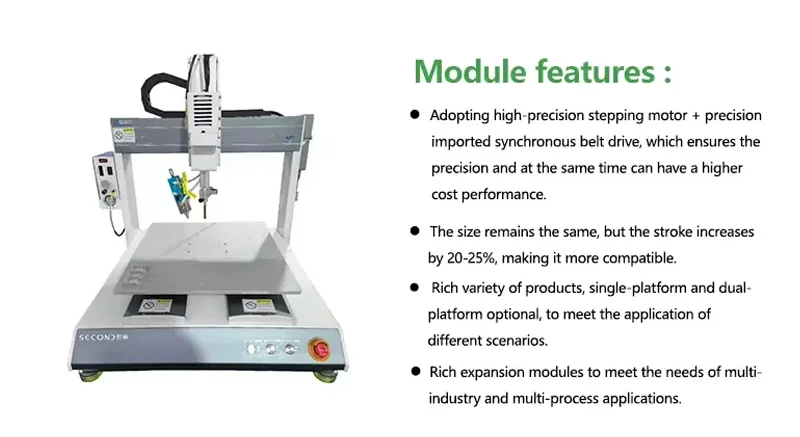

Module features
Specifications:
| Model | SEC-E380 | SEC-E480 | SEC-E580Y |
| Working range | 380(X)*380(Y)*100(Z）mm | 480(X)*480(Y)*100(Z）mm | 580(X)*480(Y)*100(Z）mm |
| Max payload | 7kg(Y)/5kg(Z) | ||
| Max travel speed | 300mm/sec(XY)/200mm/sec(Z) | ||
| Driven mode | Stepper motor, belt, lead screw | ||
| XYZ position accuracy | ±0.025mm | ||
| Resolution | 0.01 | ||
| Memory storage | 999 program setup (each program store up to 65535 spots) | ||
| Operating method | LCD, User friendly teach pendant | ||
| Motor | Precision stepper motor | ||
| Monement patterns | 3 axis spot to spot, continue line, arc | ||
| I/O | 1 input, 4 output(support expansion) | ||
| Power supply | AC 22V 50/60 Hz 0.5 KW | ||
| Working environment | Temperature 0~40℃，Humidity 20%~90% | ||
| Weight | Approx 48kg | Approx 60kg | Approx 75kg |
| Machine demension | 520*583*645mm | 620*683*645mm | 720*783*645mm |
Apply industries：
Fixing and protection of PCB electronic parts, mobile phone, notebook shell bonding, LCD glass, LED dispensing, optical lens dispensing and packaging,
auto parts, hardware parts and adhesive dispensing, etc.
Applied works：
Underfill, dam fill, frame bonding and sealing, chip bonding, lead encapsulation, precision coating.
Material ref:
UV glue, AB glue, EPOXY (black glue), white glue, EMI conductive glue, silicone, RTV, epoxy resin, instant glue, silver glue, red glue, solder paste, thermal paste, solder mask paste , clear paint, screw fixer, etc.
