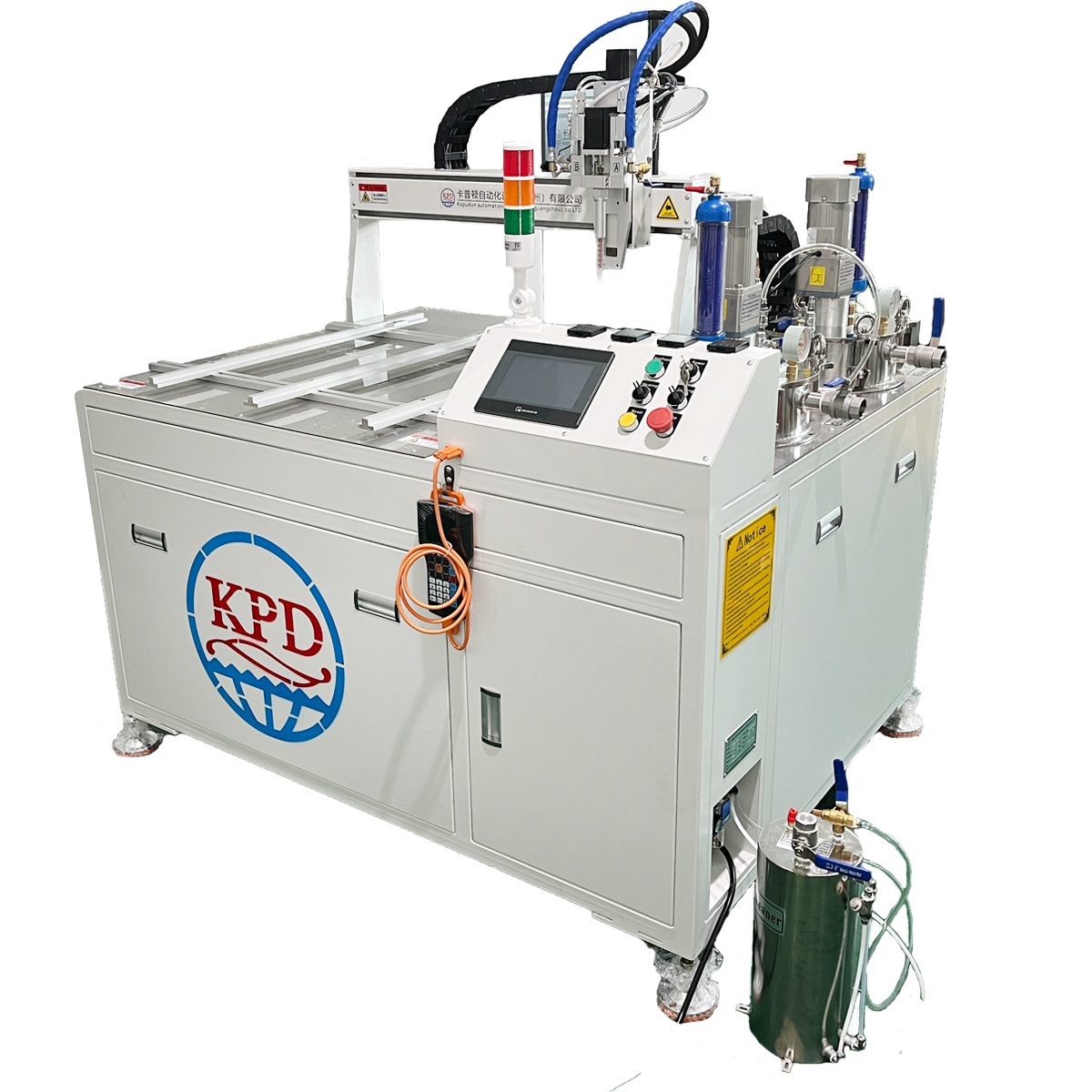

glue potting machine

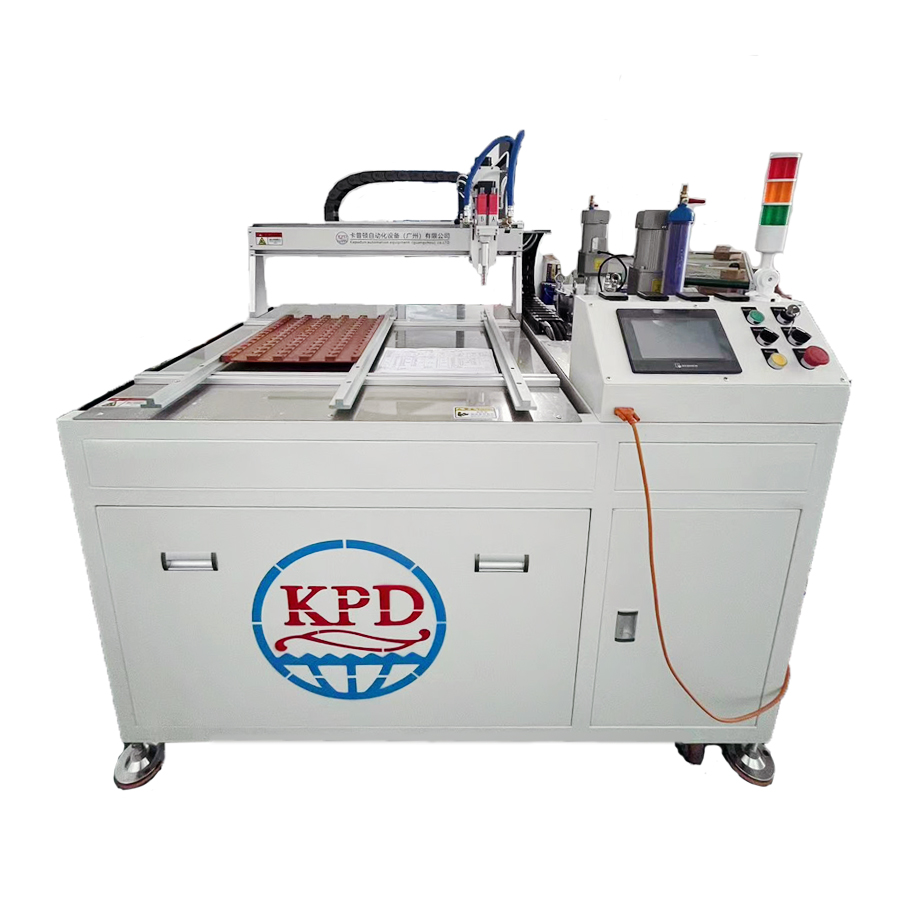

China glue dispensing machine

full automatic glue potting machine KPD-700

suitable for two component ab part glue such as silicone epoxy polyurethane

widely used in LED, sensor , transformer, PCB, sticker and so on for potting and encapsulation

AB Epoxy Two component Automatic Adhesive Potting Machines KPD-700

performance：

User friendly bilingual (Chinese/English) touch screen human interface, easy to learn and understand, can store 100 sets of glue parameters;
The filling speed, the filling time and the stopping time can all be parameterized, the amount of glue is stable, and the glue is not leaked;
It has the functions of point, line, surface, arc, circle and three-axis linkage, which can adapt to any irregular object filling;
Saving labor, one device can reach the output of traditional 5-6 people;
According to the need ratio, to achieve side mixing while filling glue, to maximize the savings of glue;
Two tanks store material nindependently, avoid materials caking, and increase storage time;
The unique control system, not affected by the pressure mfactor, to avoid uneven rubber, drawing, air bubbles and other phenomena;
The storage tank is equipped with a liquid level sensor switch, with Automatic material shortage alarm;
Optional glue stirring, heating and vacuum defoaming function, suitable for different kinds of infusion process.

1. This automatic glue potting machine uses touch screen display operation, full Chinese display interface, easy to learn and easy to understand, workers training is simple, save training time and training costs;
2. Program editing is simple, can store multiple trajectory graphics at a time, only need to carry out a simple selection operation, can quickly adapt to different artifacts;
3. The rubber outlet adopts double liquid/static dynamic rubber valve, and the mixing pipe is connected to the bottom, so as to realize the uniform mixing of AB glue, and prevent the phenomenon such as dry filling of glue;
4. Precise control of glue quantity meets the requirements of high reliability under the condition of automatic production. It has a unique control system, which is not affected by pressure and other factors, and avoids the phenomenon of uneven glue, glue drop, wire drawing and burr.
5. The automatic glue potting machine is easy to adjust, can adapt to the requirements of different heights of the work-piece in a certain range, and can ensure that when changing the needle mixing tube, do not need to re-correct the trajectory;
6. Strong versati

Specifications:

Specification:

Specification
Model	KPD-700			KPD-500	KPD-100
Work Area	700(X)700(Y)100(Z)mm			700(X)600(Y)100(Z)mm	一
Travel speed	300mm/sec			500mm/sec	一
Operating method	auto switch			auto switch	Foot switch
Mixing precision	±2%
potting precision	±2%
Mixing Ratio	100：100～100:20 or 100:20～100:10 adjustable
Potting speed	1～30g/sec Customizable
Operable viscosity	<100000CPS
Operation system	Motion Controller+Computer / Motion Controller+”Linux system”Touch screen
Measuring mode	Stepping Motor+gear pump/plunger pump /screw pump
Drive Mode	Micro stepping motor& sync belt			servo motor & ball screw
Power supply	AC220V 50HZ 2.5KW				AC220V 50HZ 2KW
Size	1620(L) ╳1220(W)╳1740(H)mm			1420(L)╳1220(W)╳1740(H)mm	1250(L) 760(W)1610(H)mm
Weight	About 530kg			About 470kg	About 265kg
Work environment	Humidity：20-90%， Temperature：0-40℃

1. Electronic Potting For:
Transformers
UL Certified
EV Motors
Automotive & Coil Assembly
Control Modules & Timers
RF Devices
Micro-electronics
Motors and Stators
Sensors
Solar Energy solar panel

Juction box
Switches & Connectors
Relays, Resistors, Capacitors
Submersible Pumps
Telecom Devices

2. E-Mobility

EV motor

Batteries

Capacitior

3. LED Encapsulants

LED wall washer

LED display

LED strip

LED power supply

Car led panel

Underwater waterproof led

4. Gifts & Decorations

lables, stickers , keyfob, Q-card, Badge,Fridge magnets, souvenirs

This glue potting machine has wide applications Semiconductor Packaging,PCB Electronic parts fixing and protection,New energy products dispensing,SMT industry dispensing, coating ,LCD glass organic board encapsulation adhesion,Mobile telephone board coating or key dispensing,Speaker dispensing,Battery box dispensing sealing,Lighting,products sealing,Auto parts coating,Hardware parts coating then,cloth anti-skid coating,Quantitative gas,liquid filling coating,Chip bonding etc.

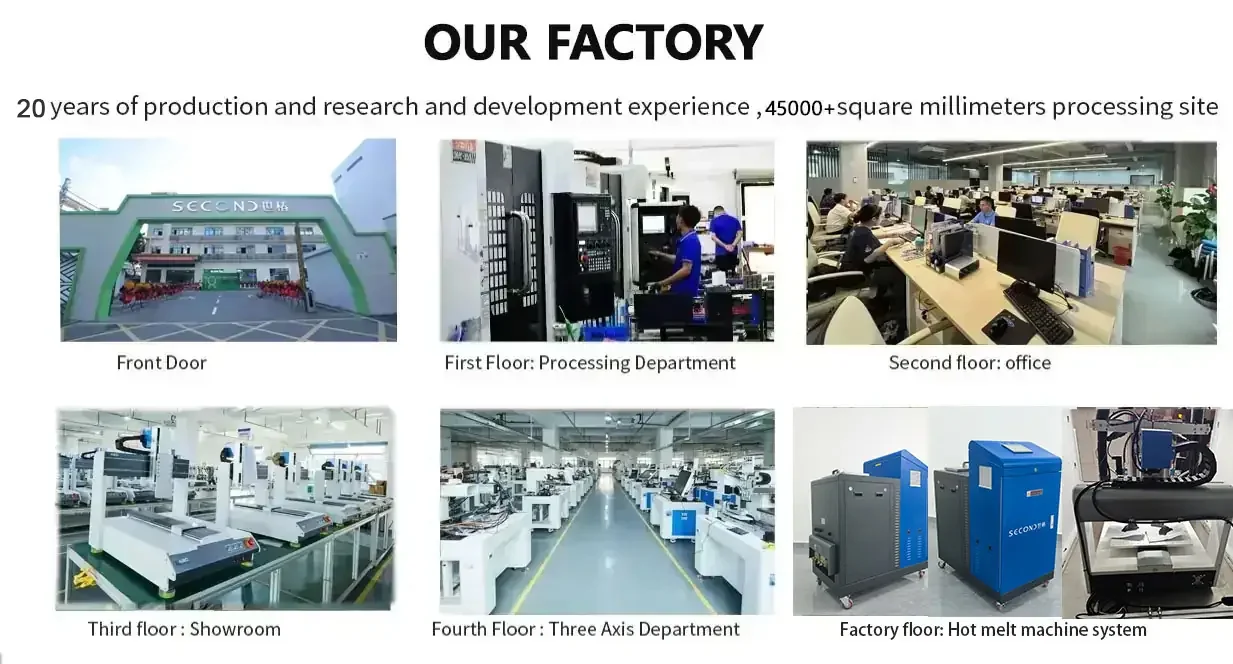

Our Factory

Logistics packaging collection

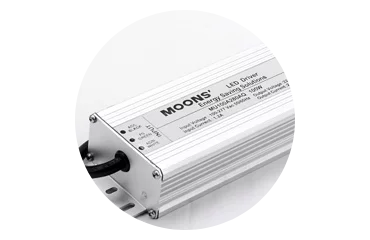

LED Driver, Power-supply

Our two-component In-line automated vacuum potting system machine is often used in the LED driver, power supply dispensing, with this encapsulated process, the product is heat dissipation, moisture-proof, waterproof, and flame retardant.

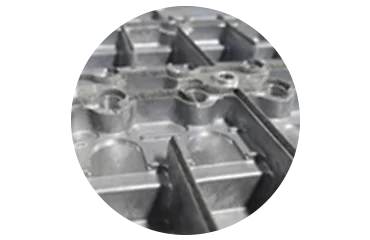

EMI, FIP, TIM

EMI and FIP dispensing techniques are widely use in the telecommunication and transportation industries. With the rapid development of communications, electric vehicles, and personal wireless electronic gadgets, these products are often required to connect and interact between each others. However, the signals sometimes interfere with the others, so need to be filtered or shielded. To improve and control the electromagnetic signals, engineers can redesign the entire product, or it can apply EMI shielding materials to filter or shield. Shielding is relatively economical and easy to achieve, it is done basically by adding shielding gasket. Our dispensing machine can directly produce different sizes of triangular shapes or D-shape filtering gaskets, these gaskets can appear in different shapes and is directly applying to the products. The dispensing machine equips with special adhesive material dispensing valve to apply directly, and without post-processing. The machine is intelligent, precise, but user-friendly, without complicated installation, or setup. In addition to the above functions, this type of dispenser equipment can also dispense FIP adhesive glue, and thermal interface material. The equipment is not only precise, but also multi-purpose, which is convenient for various type of storage battery, and electronic product applications.

EMS, Underfill

Dispensing equipment are important for various EMS (electronic manufacturing service) productions. Electronic product processing service industry is indispensable to modern life, because many products are now equips with electronic and become more intelligent. These products are becoming more and more complex, precise and tiny in size. And for consumer product, their production volume also in large production and fast turnover. Therefore, it is necessary to use automated equipment, or even fully automated production lines to produce to meet apply the materials. With the automatic dispensing robots, it is possible to catch up with the capacity and demands. And more importantly, to improve economic efficiency to maximize economic of scale, and so to reduce unit prices to enhance competition. Very often in this type of production, the uses of dispensing machines or equipment is inseparable. In this production process, the glue dispenser is usually used to assist in the functions of fixing, connecting, protecting, dissipating heat and so on between parts and components. Our glue dispensers can directly add the relevant materials to the specified positions accurately and quickly as required.

Casting, Encapsulating

Two-component materials’ encapsulating and casting production are important to enhance electronic products. No matter if your product is for business selling, or for household consuming, nowadays everyone has higher quality requirements and expectations. Furthermore, the protection of the product is not only to optimize the function of the product, but also to prolong the service life of the product, thereby reducing production waste. In electronic products the parts and components are generally composed of different metals and sensitive chemical combined materials. The more precise the product, the more high-tech the product it is, with this, it requires higher protection, so that it can be optimized according to the requirements. In doing so, it can state of long-term operation without being affected by the surrounding environmental conditions. Our two-component potting machines are specially designed for this production, as well as our vacuum encapsulating and casting potting machines. These machines can accurately degas the two-component adhesive materials base on the ratio, meter, mix, and homogenously and continually to the products. These materials cannot be applying manually, they need to use machines, which can be supplied in large quantities, continuously, accurately, and for long time of works. With the materials provided by such equipment, the product will have better protection, heat dissipation, waterproof, moisture-proof, encryption (to protect the circuitry design, and components used).
