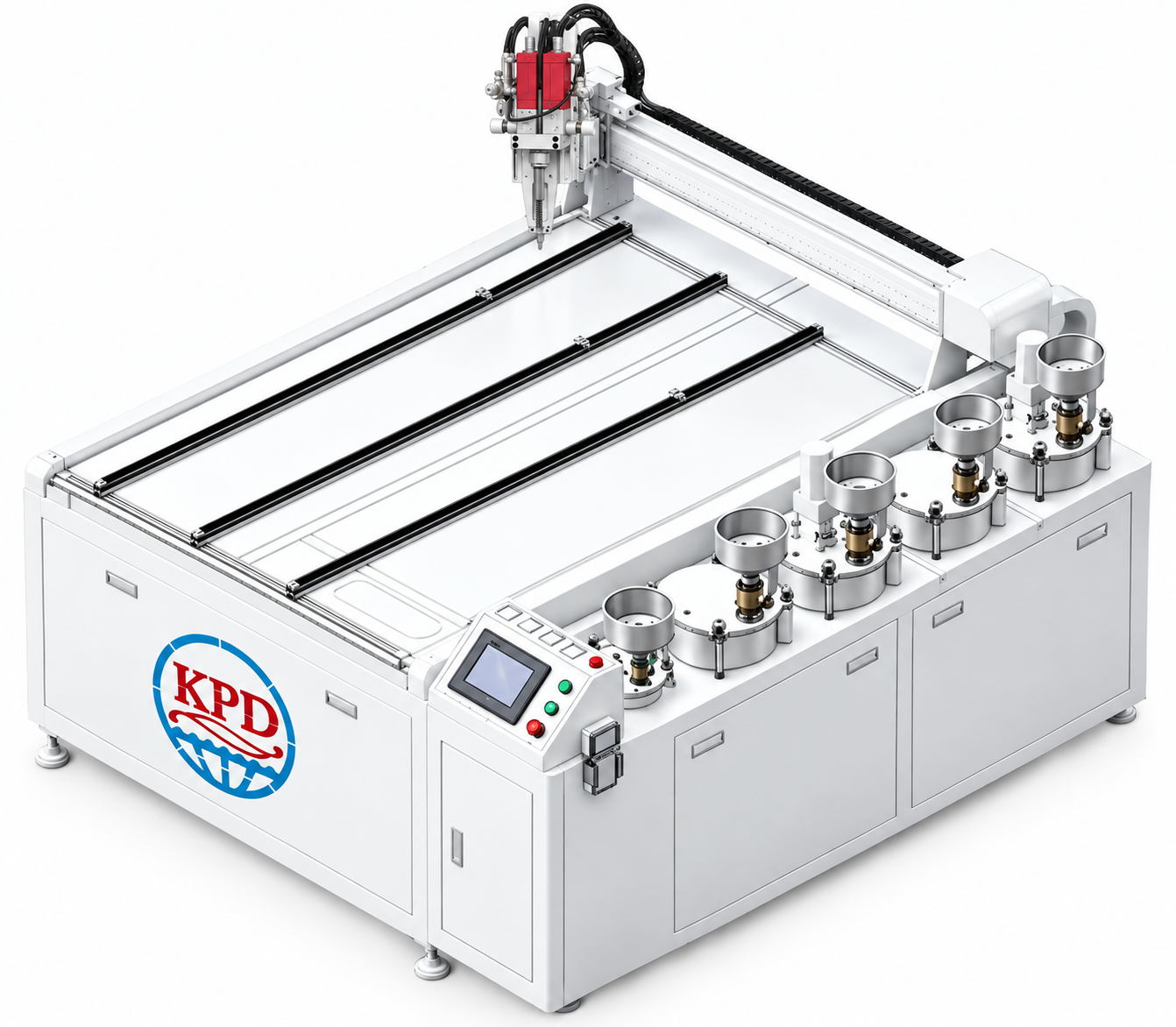

2K Adhesive Dispensing System | Automatic Two-Component Meter Mix Dispense Machine with Four tanks

he KPD 2K Adhesive Dispensing System is an automatic two-component adhesive solution designed for precise metering, mixing and dispensing of epoxy, PU and other 2K adhesives. It provides accurate mixing ratios, stable glue output and consistent dispensing performance, making it ideal for potting, encapsulation, bonding and sealing applications in electronics, automotive, new energy, electrical components and industrial products.

The KPD 2K Adhesive Dispensing System is an automatic two-component meter-mix-dispense solution designed for accurate A/B adhesive metering, uniform mixing and precise dispensing. It is suitable for epoxy, PU and other 2K adhesives, supporting applications such as electronic potting, LED driver encapsulation, transformer potting, sensors, power modules, automotive components and new-energy products.

Product Introduction

The 2K Adhesive Dispensing System integrates adhesive storage, precision metering, two-component mixing and automatic dispensing into one complete solution. The A and B materials are supplied separately and accurately metered according to the required mixing ratio before being mixed and dispensed through the dispensing valve.

With PLC and touchscreen control, the system allows operators to adjust key parameters such as mixing ratio, dispensing volume and dispensing speed. Optional heated tanks, heated hoses, vacuum functions and automatic cleaning systems can be configured according to adhesive characteristics and production requirements.

Key Features

Precise A/B metering
Adjustable mixing ratio
Automatic two-component mixing
Stable and repeatable dispensing
PLC + touchscreen control
Adjustable dispensing volume and speed
Heated tanks and material hoses
Vacuum degassing option
Anti-drip dispensing valve
Static or dynamic mixing options
Automatic cleaning system
Customized dispensing head and working area
Suitable for automated production lines

Applications

Specifications:

Tech Data

ITEM	Parameter
Mixing ratio	1:1–10:1 adjustable
Working range	700700100mm
Displacement speed	500mm/s（speed）
Out-glue speed	0.5-12g/s per single pump
Accuracy	±2%（output volume）±2%（mixing）
tolerance	≤0.03mm
Flow control	Digital input
Program memory	99pcs-999pcs
Motion trail	Dot , line ,curve ,circle
Automatic controlling system	Touch screen (to achieve program programming, modification, storage and so on
Out-glue control system	AB glue back suction valve, achieve AB glue independent operation
Programmatically	Tech programming/or computer systems (Micro software Windows 7,Windows10 optional)
Mixing method	dynamic mixing
Power supply	220V/50Hz/1500W without heating
Air source	0.5-0.8Mpa
Viscosity range	50-20000cps
Outer dimension	1500L1200W1600H mm
A tank	10L 25L 40L stainless tank（optional）
B tank	10L 25L 40L stainless tank（optional）
Others	AB tank 、A pump、AB pipeline heating function

Tabletop Epoxy Dispensing Applications

The compact epoxy dispensing machine is suitable for a wide range of applications:

PCB Potting
Electronic Component Encapsulation
LED Encapsulation
Sensor Potting
Connector Sealing
Transformer Potting
Power Supply Encapsulation
Automotive Electronics
Industrial Electronics
Epoxy Bonding
Waterproofing
Insulation Applications

Our Factory

Logistics packaging collection

LED Driver, Power-supply

Our two-component In-line automated vacuum potting system machine is often used in the LED driver, power supply dispensing, with this encapsulated process, the product is heat dissipation, moisture-proof, waterproof, and flame retardant.

EMI, FIP, TIM

EMI and FIP dispensing techniques are widely use in the telecommunication and transportation industries. With the rapid development of communications, electric vehicles, and personal wireless electronic gadgets, these products are often required to connect and interact between each others. However, the signals sometimes interfere with the others, so need to be filtered or shielded. To improve and control the electromagnetic signals, engineers can redesign the entire product, or it can apply EMI shielding materials to filter or shield. Shielding is relatively economical and easy to achieve, it is done basically by adding shielding gasket. Our dispensing machine can directly produce different sizes of triangular shapes or D-shape filtering gaskets, these gaskets can appear in different shapes and is directly applying to the products. The dispensing machine equips with special adhesive material dispensing valve to apply directly, and without post-processing. The machine is intelligent, precise, but user-friendly, without complicated installation, or setup. In addition to the above functions, this type of dispenser equipment can also dispense FIP adhesive glue, and thermal interface material. The equipment is not only precise, but also multi-purpose, which is convenient for various type of storage battery, and electronic product applications.

EMS, Underfill

Dispensing equipment are important for various EMS (electronic manufacturing service) productions. Electronic product processing service industry is indispensable to modern life, because many products are now equips with electronic and become more intelligent. These products are becoming more and more complex, precise and tiny in size. And for consumer product, their production volume also in large production and fast turnover. Therefore, it is necessary to use automated equipment, or even fully automated production lines to produce to meet apply the materials. With the automatic dispensing robots, it is possible to catch up with the capacity and demands. And more importantly, to improve economic efficiency to maximize economic of scale, and so to reduce unit prices to enhance competition. Very often in this type of production, the uses of dispensing machines or equipment is inseparable. In this production process, the glue dispenser is usually used to assist in the functions of fixing, connecting, protecting, dissipating heat and so on between parts and components. Our glue dispensers can directly add the relevant materials to the specified positions accurately and quickly as required.

Casting, Encapsulating

Two-component materials’ encapsulating and casting production are important to enhance electronic products. No matter if your product is for business selling, or for household consuming, nowadays everyone has higher quality requirements and expectations. Furthermore, the protection of the product is not only to optimize the function of the product, but also to prolong the service life of the product, thereby reducing production waste. In electronic products the parts and components are generally composed of different metals and sensitive chemical combined materials. The more precise the product, the more high-tech the product it is, with this, it requires higher protection, so that it can be optimized according to the requirements. In doing so, it can state of long-term operation without being affected by the surrounding environmental conditions. Our two-component potting machines are specially designed for this production, as well as our vacuum encapsulating and casting potting machines. These machines can accurately degas the two-component adhesive materials base on the ratio, meter, mix, and homogenously and continually to the products. These materials cannot be applying manually, they need to use machines, which can be supplied in large quantities, continuously, accurately, and for long time of works. With the materials provided by such equipment, the product will have better protection, heat dissipation, waterproof, moisture-proof, encryption (to protect the circuitry design, and components used).
