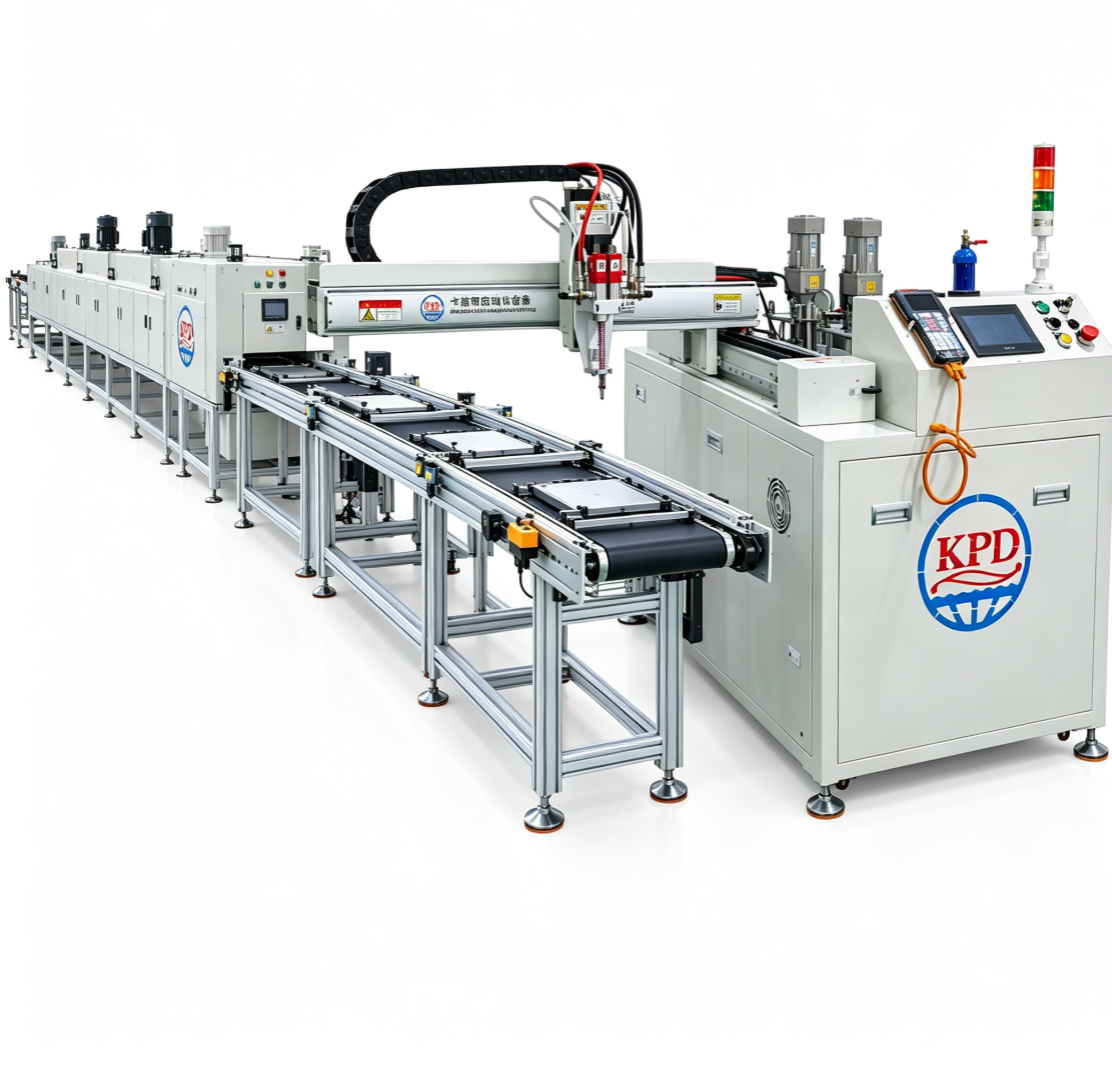

Two Component Glue Dispensing Machine with Oven Tunnel | Automatic 2K Potting & Curing Line

2K Precise Metering

High-precision A/B component metering for consistent adhesive ratios.

Automatic Mixing & Dispensing

Automatic mixing and dispensing of two-component adhesives.

Automatic Potting

Precise filling and encapsulation of products.

Integrated Conveyor System

Automatic product transfer between dispensing and curing processes.

Oven Tunnel Curing

Continuous thermal curing with adjustable temperature and residence time.

PLC + HMI Control

Centralized control of dispensing, conveying and curing parameters.

Continuous Production

Designed for stable, repeatable inline production.

Flexible Customization

Production line layout and process parameters can be customized to different products.

01 | 2K Meter Mix Dispense Technology
Precise metering, mixing and dispensing of two-component adhesives.

02 | Automatic Potting Process
Improves production efficiency and product consistency.

03 | High Repeatability
Stable dispensing performance for mass production.

04 | Smart Control System
PLC + HMI operation with programmable parameters.

05 | Customized Solutions
Designed according to customer products and production requirements.

Specifications:

Item	Specification
Adhesive	2K Epoxy / PU / Silicone
Material System	A + B Two-Component
Metering System	Precision Metering Pumps
Mixing System	Static / Dynamic Mixing
Dispensing Mode	Automatic Dispensing / Potting
Mixing Ratio	Adjustable According to Adhesive
Conveyor	Automatic Conveyor Transfer
Curing System	Industrial Oven Tunnel
Temperature Control	Programmable
Curing Time	Adjustable
Control System	PLC + HMI
Production Mode	Continuous Inline Production
Layout	Customized
Automation Level	Automatic / Fully Automatic

Product Highlights

01 | 2K Metering & Mixing
Accurate A/B material metering and uniform adhesive mixing.

02 | Automatic Glue Dispensing
Programmable dispensing volume, speed and position.

03 | Automatic Potting
Consistent encapsulation for improved product protection.

04 | Conveyor Transfer
Smooth automatic transfer from dispensing station to curing oven.

05 | Oven Tunnel Curing
Controlled heating provides stable and efficient adhesive curing.

06 | Fully Integrated Production Line
Combines dispensing, potting, conveying and curing into one automated system.

Advantages

Higher Production Efficiency
Consistent Dispensing Quality
Stable 2K Mixing Ratio
Reduced Manual Labor
Reduced Material Waste
Continuous Inline Production
Improved Curing Consistency
Better Product Quality
Easy Production Line Integration
Customized Automation Solutions

Applications

Electronics

Electronic Components
PCB Encapsulation
Sensors
Connectors

Power Electronics

LED Drivers
Power Supplies
Transformers
Inductors

Automotive

Automotive Electronics
Control Modules
Automotive Sensors

New Energy

Battery Components
Energy Storage Components
Charging Equipment

Electrical

Electrical Insulation
Waterproof Encapsulation
Sealing Applications

Our Factory

Logistics packaging collection

LED Driver, Power-supply

Our two-component In-line automated vacuum potting system machine is often used in the LED driver, power supply dispensing, with this encapsulated process, the product is heat dissipation, moisture-proof, waterproof, and flame retardant.

EMI, FIP, TIM

EMI and FIP dispensing techniques are widely use in the telecommunication and transportation industries. With the rapid development of communications, electric vehicles, and personal wireless electronic gadgets, these products are often required to connect and interact between each others. However, the signals sometimes interfere with the others, so need to be filtered or shielded. To improve and control the electromagnetic signals, engineers can redesign the entire product, or it can apply EMI shielding materials to filter or shield. Shielding is relatively economical and easy to achieve, it is done basically by adding shielding gasket. Our dispensing machine can directly produce different sizes of triangular shapes or D-shape filtering gaskets, these gaskets can appear in different shapes and is directly applying to the products. The dispensing machine equips with special adhesive material dispensing valve to apply directly, and without post-processing. The machine is intelligent, precise, but user-friendly, without complicated installation, or setup. In addition to the above functions, this type of dispenser equipment can also dispense FIP adhesive glue, and thermal interface material. The equipment is not only precise, but also multi-purpose, which is convenient for various type of storage battery, and electronic product applications.

EMS, Underfill

Dispensing equipment are important for various EMS (electronic manufacturing service) productions. Electronic product processing service industry is indispensable to modern life, because many products are now equips with electronic and become more intelligent. These products are becoming more and more complex, precise and tiny in size. And for consumer product, their production volume also in large production and fast turnover. Therefore, it is necessary to use automated equipment, or even fully automated production lines to produce to meet apply the materials. With the automatic dispensing robots, it is possible to catch up with the capacity and demands. And more importantly, to improve economic efficiency to maximize economic of scale, and so to reduce unit prices to enhance competition. Very often in this type of production, the uses of dispensing machines or equipment is inseparable. In this production process, the glue dispenser is usually used to assist in the functions of fixing, connecting, protecting, dissipating heat and so on between parts and components. Our glue dispensers can directly add the relevant materials to the specified positions accurately and quickly as required.

Casting, Encapsulating

Two-component materials’ encapsulating and casting production are important to enhance electronic products. No matter if your product is for business selling, or for household consuming, nowadays everyone has higher quality requirements and expectations. Furthermore, the protection of the product is not only to optimize the function of the product, but also to prolong the service life of the product, thereby reducing production waste. In electronic products the parts and components are generally composed of different metals and sensitive chemical combined materials. The more precise the product, the more high-tech the product it is, with this, it requires higher protection, so that it can be optimized according to the requirements. In doing so, it can state of long-term operation without being affected by the surrounding environmental conditions. Our two-component potting machines are specially designed for this production, as well as our vacuum encapsulating and casting potting machines. These machines can accurately degas the two-component adhesive materials base on the ratio, meter, mix, and homogenously and continually to the products. These materials cannot be applying manually, they need to use machines, which can be supplied in large quantities, continuously, accurately, and for long time of works. With the materials provided by such equipment, the product will have better protection, heat dissipation, waterproof, moisture-proof, encryption (to protect the circuitry design, and components used).
