The 2600ml Glue Dispensing Machine is designed for accurate metering, mixing, and dispensing of two-component adhesives such as epoxy, polyurethane (PU), silicone, and other AB adhesives. Equipped with high-precision metering pumps and an efficient mixing system, it ensures a stable mixing ratio and consistent dispensing quality for industrial production.
This machine is widely used in electronic potting, transformer encapsulation, sensor sealing, LED driver potting, PCB protection, automotive electronics, and other applications requiring precise adhesive dispensing.
| Item | Specification |
|---|---|
| Machine Model | KPD-330 |
| Material Capacity | Tank: 2600ml |
| Warranty | 12 Months |
| Applicable Materials | Epoxy Resin, PU, Silicone, AB Glue |
| Dispensing Accuracy | ±2% |
| Production Capacity | Depending on material viscosity |
| Drive System | Pneumatic / Motor Driven (Optional) |
| Dispensing Mode | Manual / Semi-Automatic / Automatic |
| Dispensing Volume | Adjustable |
| Working Pressure | 0.4 – 0.8 MPa |
| Power Supply | AC 110V / 220V, 50/60Hz |
| Control System | PLC + Touch Screen (Optional) |
| Operation Interface | Button Control or Touch Screen |
| Machine Dimensions | Customized |
| Machine Weight | Approx. 30–50 kg |

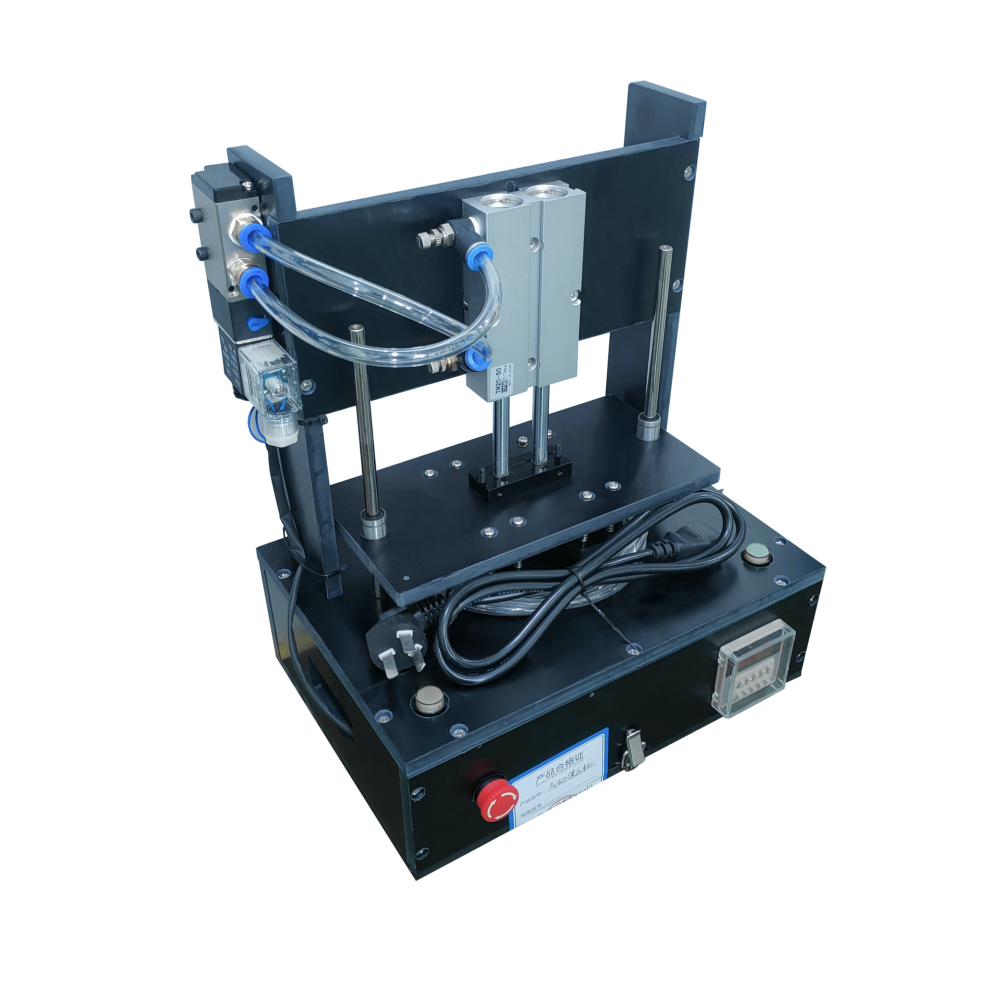

KPD-300 Desktop glue dispensing machine
Two-component materials’ encapsulating and casting production are important to enhance electronic products. No matter if your product is for business selling, or for household consuming, nowadays everyone has higher quality requirements and expectations. Furthermore, the protection of the product is not only to optimize the function of the product, but also to prolong the service life of the product, thereby reducing production waste. In electronic products the parts and components are generally composed of different metals and sensitive chemical combined materials. The more precise the product, the more high-tech the product it is, with this, it requires higher protection, so that it can be optimized according to the requirements. In doing so, it can state of long-term operation without being affected by the surrounding environmental conditions. Our two-component potting machines are specially designed for this production, as well as our vacuum encapsulating and casting potting machines. These machines can accurately degas the two-component adhesive materials base on the ratio, meter, mix, and homogenously and continually to the products. These materials cannot be applying manually, they need to use machines, which can be supplied in large quantities, continuously, accurately, and for long time of works. With the materials provided by such equipment, the product will have better protection, heat dissipation, waterproof, moisture-proof, encryption (to protect the circuitry design, and components used).
