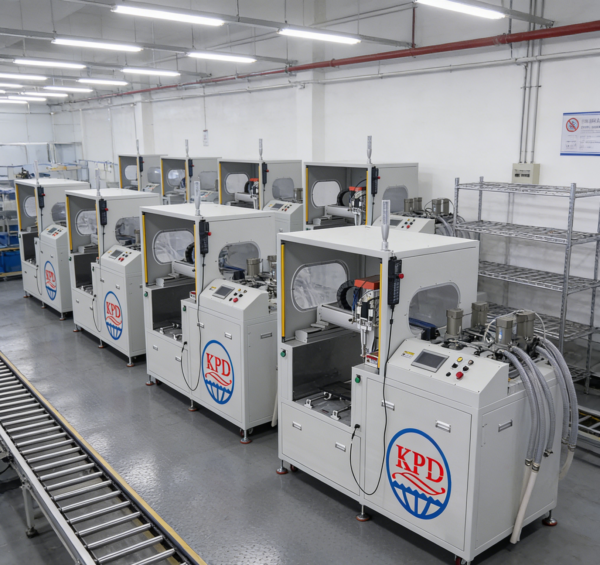

A glue potting machine (also called resin potting machine or AB glue potting machine) is an automated industrial equipment that precisely meters, mixes, and dispenses liquid potting compounds (typically two-component AB glues) to encapsulate, seal, and protect electronic components and assemblies.
Core Definition & Purpose
It is designed to:
- Encapsulate electronic parts (PCBs, sensors, transformers, LEDs, etc.) with a protective resin.
- Provide sealing, waterproofing, insulation, shock absorption, and corrosion resistance.
- Ensure long-term reliability of components in harsh environments.
How It Works (Typical Two-Component System)
- Material Storage: Two separate tanks hold resin (A) and hardener (B) to prevent premature curing.
- Precision Metering: High-precision pumps (gear, screw, or piston) deliver A and B in an exact, programmable ratio (e.g., 1:1, 2:1, 10:1).
- Mixing: The two components are mixed thoroughly in a static or dynamic mixing nozzle.
- Dispensing: The mixed resin is dispensed onto or into the product via a nozzle, often guided by a 3-axis robotic arm for complex patterns.
- Curing: The resin cures to form a solid, protective layer.
Key Features
- PLC/Touchscreen Control: For easy programming of volume, ratio, speed, and path.
- High Precision: Mixing ratio accuracy typically ±1–2%, positioning accuracy down to ±0.01 mm.
- Vacuum Degassing: Removes air bubbles for void-free potting.
- Heating/Stirring: Maintains consistent viscosity and material quality.
- Automatic Cleaning: Prevents clogging in the mixing head.
Common Applications
- Electronics: PCB assemblies, power supplies, sensors, LEDs, capacitors, transformers.
- Automotive: ECUs, ignition coils, parking sensors, headlights, battery packs.
- New Energy: Solar panels, wind turbine components, battery management systems.
- Industrial Automation: Encoders, control units, connectors.
Common Potting Materials
- Epoxy Resins: High strength, good adhesion, excellent electrical insulation.
- Polyurethanes (PU): Good flexibility, impact resistance, and weatherability.
- Silicones: Extreme temperature resistance (-50°C to 200°C+), flexibility, and good thermal conductivity.
