🔷 Why Electronic Coils Need Potting (Encapsulation)

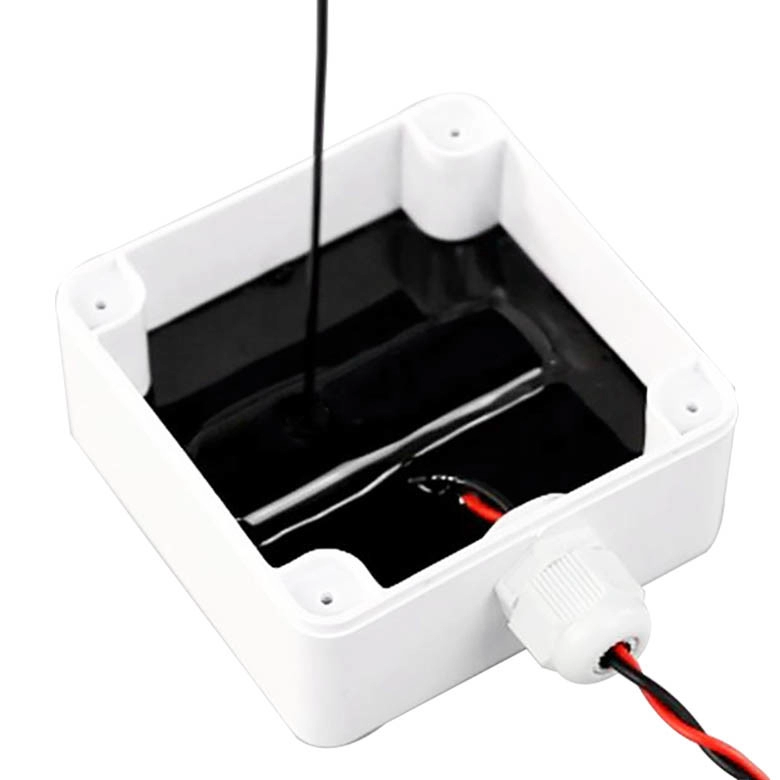

Electronic coils such as transformers, inductors, relays, and motor windings are widely used in industrial and electronic applications. To ensure long-term reliability and stable performance, these components are often protected by a process called potting (encapsulation) using epoxy, silicone, or polyurethane compounds. These coils require potting for insulation, moisture proofing, shock resistance, heat dissipation and electromagnetic shielding. Potting treatment greatly enhances durability and working stability for electronic products.
🔹 1. Electrical Insulation Protection
Coils operate under electrical stress and high voltage conditions. Without proper protection, they may suffer from insulation failure or short circuits.
Potting materials provide a strong insulating layer that:
- Prevents inter-turn short circuits
- Improves high-voltage resistance
- Reduces leakage current caused by dust or moisture
🔹 2. Moisture and Environmental Protection
Electronic coils are sensitive to environmental conditions such as humidity, dust, and chemical exposure.
Potting creates a sealed structure that:
- Prevents moisture ingress
- Protects against corrosion and oxidation
- Improves performance in harsh environments such as outdoor or industrial settings
🔹 3. Vibration and Mechanical Stability
During operation, coils may experience vibration, shock, and mechanical stress, especially in automotive and industrial equipment.
Potting helps to:
- Fix internal components in place
- Prevent wire movement or damage
- Enhance mechanical strength and durability
🔹 4. Heat Dissipation Improvement
Although potting materials may seem insulating, many compounds such as epoxy and silicone help distribute heat more evenly.
Benefits include:
- Reduced hot spots inside the coil
- Improved thermal stability
- Extended component lifespan
🔹 5. Noise Reduction
Electromagnetic devices often generate audible noise due to vibration of the coil structure.
Potting significantly reduces noise by:
- Dampening mechanical vibrations
- Stabilizing internal magnetic structures
- Improving overall acoustic performance
🔹 6. Increased Reliability and Service Life
By combining electrical, mechanical, and environmental protection, potting significantly improves product reliability.
Key benefits:
- Longer service life
- Lower failure rate
- Improved industrial-grade performance
🔹 Common Potting Materials
| Material | Characteristics | Applications |
|---|---|---|
| Epoxy Resin | High hardness, strong insulation | Transformers, power supplies |
| Silicone | Flexible, high temperature resistance | High-heat electronics |
| Polyurethane (PU) | Elastic, shock resistant | Automotive electronics |
🔹 Conclusion
Potting is an essential process in modern electronics manufacturing. By encapsulating coils with protective materials, manufacturers can significantly enhance electrical insulation, mechanical stability, and environmental resistance, ensuring reliable performance in demanding applications.
