In modern electronics and electrical manufacturing, components are constantly exposed to extreme operational stress—including thermal shock, chemical corrosion, moisture ingress, and intense mechanical vibration. To safeguard sensitive printed circuit boards (PCBs), EV battery management systems (BMS), and power transformers, manufacturers rely heavily on epoxy filling and encapsulation machines.
Transitioning from manual resin pouring to automated encapsulation is no longer just an upgrade—it is a critical requirement for high-yield, zero-defect production. This comprehensive guide explores how automatic epoxy potting equipment works, its key engineering benefits, and how to select the right machine for your assembly line.
What is an Epoxy Filling and Encapsulation Machine?

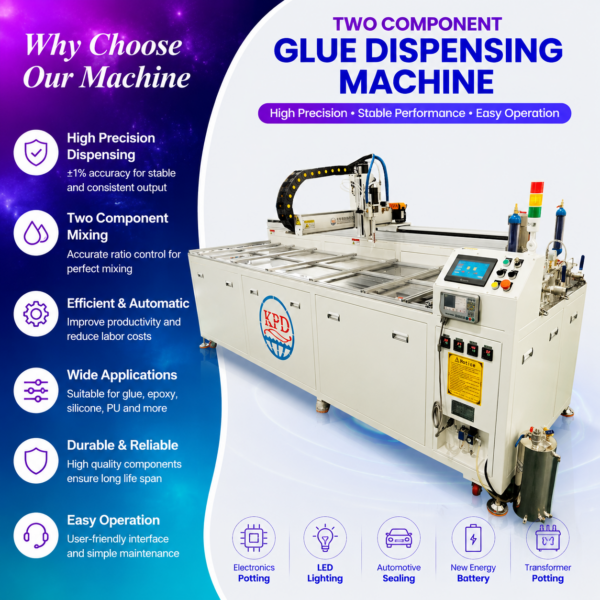

An epoxy filling and encapsulation machine (often referred to as a two-component potting system or epoxy dispenser) is precision automated equipment designed to meter, mix, and dispense two-part epoxy resins, polyurethane, or silicone compounds directly into electronic housings or components.
The encapsulation process completely seals the electrical assembly inside a protective liquid resin compound, which subsequently cures into a solid, highly durable insulating barrier.
Key Engineering Capabilities:
-
Automated Ratio Control: Precise volumetric or gravimetric metering for Part A (Resin) and Part B (Hardener) ranging from
100:10to100:100. -
Dynamic & Static Mixing: Homogeneous blending without introducing micro-air bubbles before dispensing.
-
Vacuum Deaeration: Eliminates trapped air inside raw material tanks to prevent internal voids and dielectric insulation breakdown.
-
Multi-Axis Motion Control: High-speed XYZ gantry motion for continuous, accurate contour dispensing and volumetric cavity filling.
Key Applications Across Industries
Automated epoxy encapsulation is vital across high-reliability sectors where component failure is not an option:
-
Automotive Electronics & EV Mobility: Potting battery module junction boxes, electric motor stators, OBC (On-Board Chargers), and ECU control units.
-
Power & Renewable Energy: Encapsulation of solar micro-inverters, wind power transformers, and heavy-duty power supplies.
-
LED Lighting & Drivers: Waterproof sealing (IP67/IP68 rating) for outdoor commercial LED controllers and architecture drivers.
-
Industrial Sensors & Relays: Protecting delicate magnetic sensors and relays against extreme moisture and thermal cycles.
Comparison: Manual vs. Automatic Epoxy Potting
| Performance Metric | Manual / Semi-Auto Potting | Automatic Epoxy Filling Machine |
| Mixing Ratio Accuracy | Inconsistent ( 5%to 10% error) | Ultra-precise (2% with servo gear pumps) |
| Air Entrapment | High risk of micro-bubbles/voids | Zero-void performance with vacuum degassing |
| Material Waste | High due to premixing pot-life limits | Minimal (mixes on-demand in nozzle) |
| Throughput & Yield | Slow, labor-intensive, operator-dependent | High-speed 24/7 continuous automation |
How to Choose the Right Encapsulation Equipment
When specifying an automatic epoxy dispensing system for your factory, consider the following technical variables:
-
Viscosity & Fillers: Abrasive fillers (such as silica or alumina for thermal conductivity) require hardened ceramic or tungsten pumps to prevent machine wear.
-
Pot Life & Cure Time: Fast-curing epoxies require dynamic mixing heads with automatic flush systems to prevent clogging in the nozzle.
-
Workpiece Geometry: Complex 3D cavities require multi-stage vacuum chamber potting (Vacuum Potting Machine) to ensure complete material penetration into tight gaps.
Conclusion & Call to Action
Investing in a state-of-the-art automatic epoxy filling and encapsulation machine drastically reduces scrap rates, enhances thermal performance, and extends the operational lifespan of critical electronic products.
