How 2K Dispensing Machines Elevate Precision, Protection, and Productivity in PCB Assembly
As printed circuit boards (PCBs) become denser, micro-sized, and integrated into mission-critical applications—from electric vehicle drive units to industrial automation controllers—protecting delicate surface-mount components from harsh environments is essential. Standard single-component adhesive dispensing often falls short when fast cure times, high thermal dissipation, or deep structural potting are required.
This is where the 2K dispensing machine (two-component dispensing system) plays a transformative role in PCB assembly (PCBA). By accurately proportioning, thoroughly mixing, and precisely applying two-part resins directly onto circuit boards, manufacturers achieve zero-void potting, reliable structural bonding, and superior conformal protection.

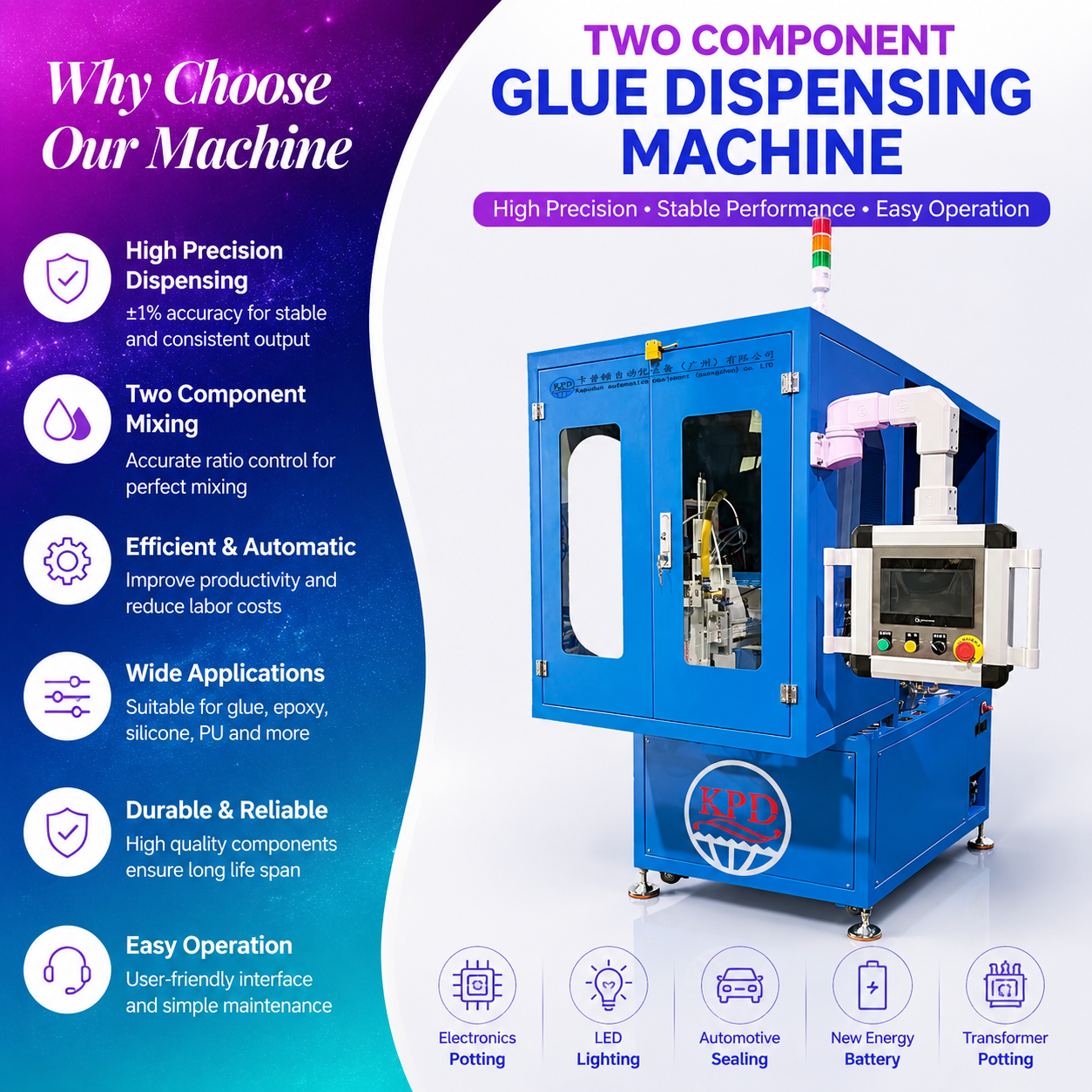

What is a 2K Dispensing Machine in PCB Applications?
A 2K dispensing machine for PCB applications is an automated system designed to handle two-part fluid materials—such as two-component epoxies, silicones, polyurethanes, or thermal conductive adhesives. Part A (base resin) and Part B (catalyst/hardener) are stored in separate pressurized reservoirs and metered through ultra-precise pumps before being mixed at the dispensing valve tip via a static or dynamic mixing nozzle.
Core Technical Capabilities for PCBA:
-
Proportional Metering Accuracy: Servo-driven gear, piston, or progressive cavity pumps ensure exact mixing ratios (e.g., 1:1, 2:1, 10:1) within $\pm 1\%$ tolerance.
-
On-Demand Mixing: Materials blend only inside the mixing tip immediately prior to application, eliminating premature curing and reducing material waste.
-
High-Speed Vision Guidance: Integrated CCD camera vision systems automatically align the dispense head to PCB fiducial marks, ensuring sub-millimeter positioning accuracy.
-
Dynamic Motion Profiles: Multi-axis CNC control enables continuous dam-and-fill encapsulation, line jetting, and localized component potting.
Primary 2K Fluid Applications in PCB Assembly
2K fluid dispensing serves several crucial functions across modern surface-mount technology (SMT) and back-end board assembly:
-
Selective PCB Potting & Encapsulation: Encapsulating sensitive microchips or high-voltage board regions against moisture, vibration, and ionic contamination.
-
Dam and Fill: Creating a high-viscosity perimeter (“Dam”) and filling the interior enclosure (“Fill”) with low-viscosity liquid resin to encapsulate chip-on-board (COB) dies without overflow.
-
Thermal Interface Material (TIM) Application: Dispensing two-part thermally conductive gap fillers between high-power PCB components (e.g., MOSFETs, CPUs) and heat sinks.
-
Structural Component Bonding: Securing heavy capacitors, inductors, and connectors against high vibration in automotive ECUs and aerospace electronics.
Key Comparison: 1K vs. 2K Dispensing Systems in PCBA
| Operational Factor | 1K Dispensing Systems | 2K Automated Dispensing Machine |
| Curing Speed & Depth | Slow; limited depth cure (depends on UV/Moisture) | Rapid, uniform room-temperature or heat-assisted cure |
| Thermal Management | Moderate thermal conductivity | High thermal conductivity (filler-loaded 2K TIMs) |
| Pot Life Overhead | Short once exposed; requires refrigerated storage | Unlimited shelf life until components mix at nozzle |
| Process Repeatability | Vulnerable to ambient humidity variations | Consistent volumetric delivery ( 2%accuracy) |

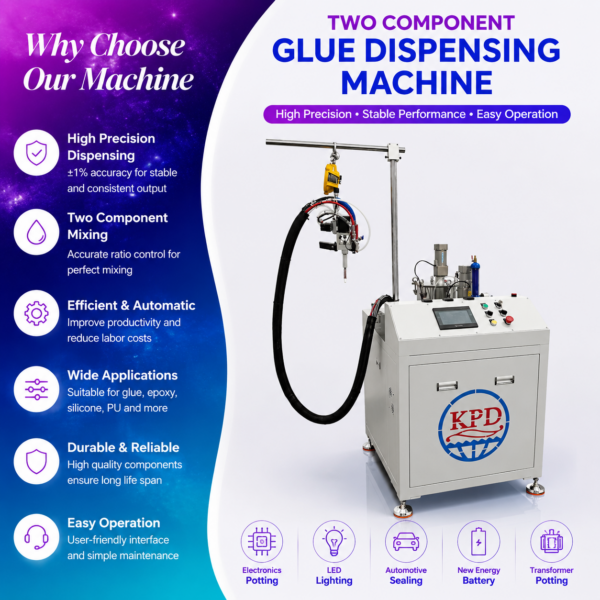

Selecting the Right 2K Dispensing System for Your PCB Line
To choose the optimal 2K equipment for your assembly environment, evaluate three core factors:
-
Material Chemistry & Fillers: Abrasive thermal fillers (silica/alumina) require ceramic-coated progressive cavity pumps or hardened gear pumps to prevent micro-wear.
-
Pot Life & Flush Automation: Fast-reacting chemistries require automated solvent flushing or automatic purging cycles to prevent material curing inside the nozzle.
-
Line Integration: Select between standalone tabletop systems for batch production or fully automated SMEMA-compatible inline systems for continuous SMT line integration.
Conclusion & Call to Action
Adopting an advanced 2K dispensing machine transforms PCB protection, delivering fast cycle times, consistent resin metering, and zero-defect quality across demanding electronic applications.
